Model No: RCDD

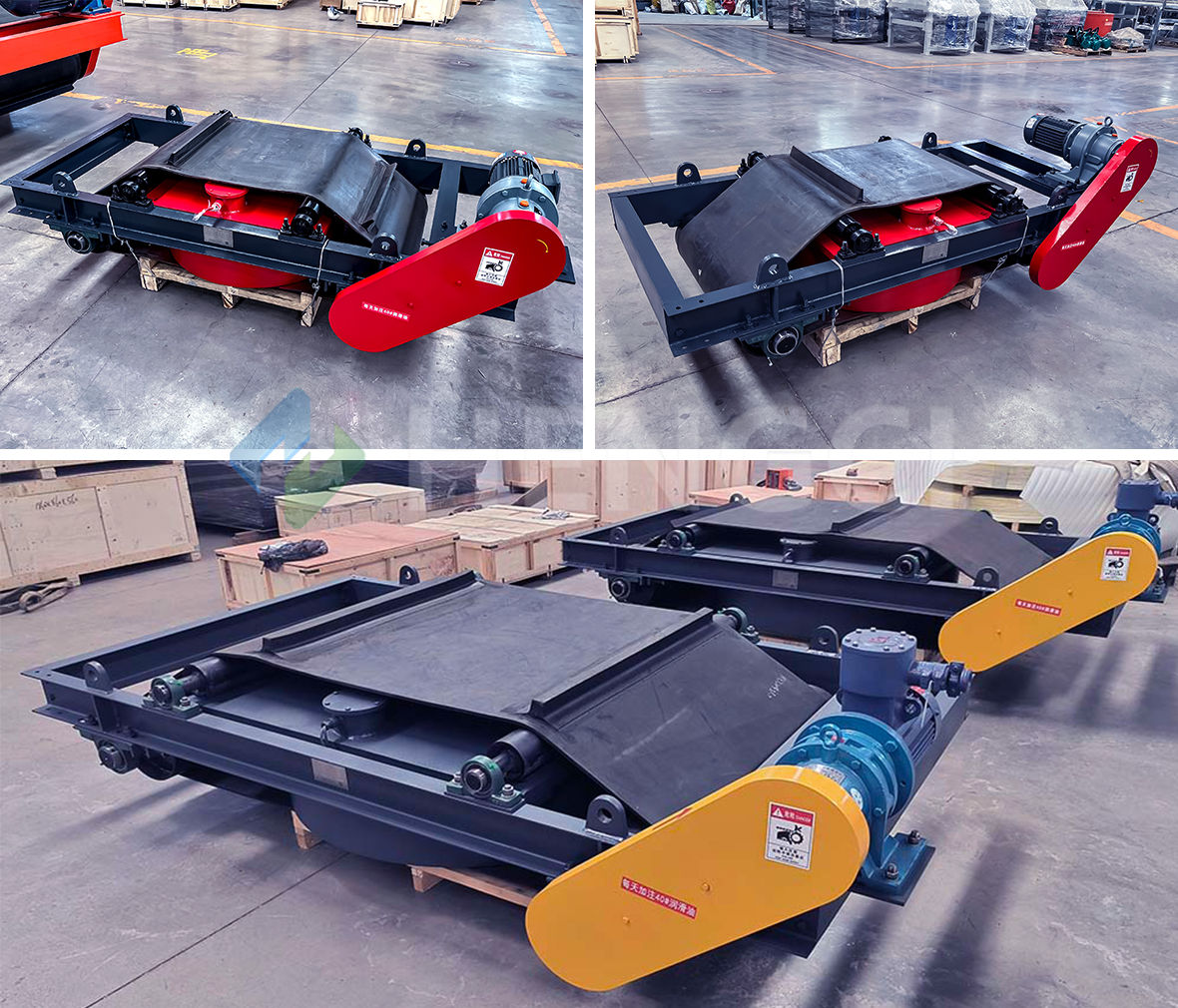

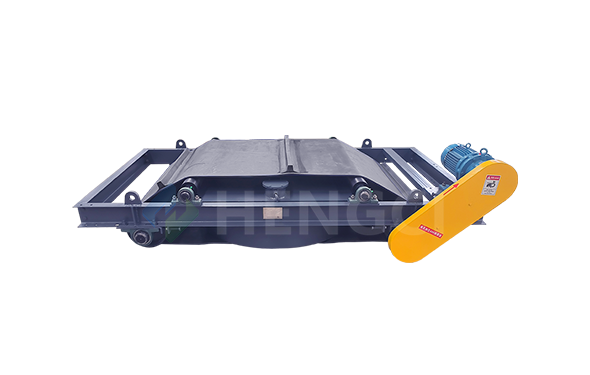

RCDD Electric overbelt magnetic separator

1. Intelligent magnetic circuit design

2. Fully sealed protection system

3. Stable iron unloading system

4. Durable and long-lasting structure

5. Intelligent control integration

Quantity :

Contact Now

one.Product Introduction

The RCDD Electric Overbelt Magnetic Separator is an advanced iron removal device that combines efficient iron removal with automatic unloading. Utilizing a specialized resin casting process for electrical engineering, this device features a self-cooling, fully sealed structure. This device not only boasts deep magnetic penetration and strong suction, but also boasts excellent resistance to dust, rain, and corrosion. The electro overband magnets' unique automatic unloading system and automatic belt deviation correction ensure long-term stable operation even in extremely harsh industrial environments, truly achieving fully automated iron removal operations.

two.Product Principle

The RCDD Electric Overbelt Magnetic Separator operates based on the principle of electromagnetic induction. When powered on, a computer-optimized magnetic system generates a high-intensity magnetic field that deeply penetrates the material layer and absorbs ferromagnetic impurities. The electro overband magnets utilize a waist-drum-shaped drum structure, and an automatic deviation correction system ensures stable operation of the unloading belt. Adsorbed iron impurities are automatically removed by vulcanized, integrated scrapers after the belt moves to the non-magnetic zone, achieving continuous iron removal. The electro overband magnets support interlocking control with conveying equipment, offering flexible options for local manual or centralized control.

three.Product Advantages

1. Intelligent Magnetic Circuit Design:

Electro overband magnets utilize a computer-optimized magnetic circuit system, boasting high magnetic field strength and deep penetration, ensuring efficient adsorption of deep-seated ferrous impurities.
2. Fully Sealed Protection System:

Cast with electrical-grade resin, the self-cooling, fully sealed structure provides excellent dustproof, rainproof, and corrosion-resistant properties, adapting to various harsh working conditions.
3. Stable Iron Unloading System:

The drum-shaped rollers of the electro overband magnets, combined with an automatic alignment function and a fully sealed bearing housing design, ensure smooth operation of the unloading belt, simplifying maintenance.
4. Durable Structure:

The integrated vulcanized scraper design of the electro overband magnetic separator is wear-resistant and damage-resistant, ensuring long-term, trouble-free continuous operation and significantly reducing maintenance costs.
5. Intelligent Control Integration:

The flexible control system of the electro overband magnetic separator can be perfectly integrated with the conveying equipment, supporting both local manual and centralized control modes for convenient production management.

four.Industry Applications

RCDD Electric Overbelt Magnetic Separators are widely used in the following fields:

Mining: Ore crushing and iron removal in mineral processing processes
Coal processing: Iron separation in coal conveying systems and coal preparation plants
Power Industry: Iron removal in power plant coal conveying systems and before coal mills
Building Materials Manufacturing: Raw material purification in cement and glass manufacturing
Metallurgy: Metal ore processing and finished product protection
Chemical Industry: Iron separation in various chemical raw materials
Ports and terminals: Iron removal and protection in bulk cargo handling systems
