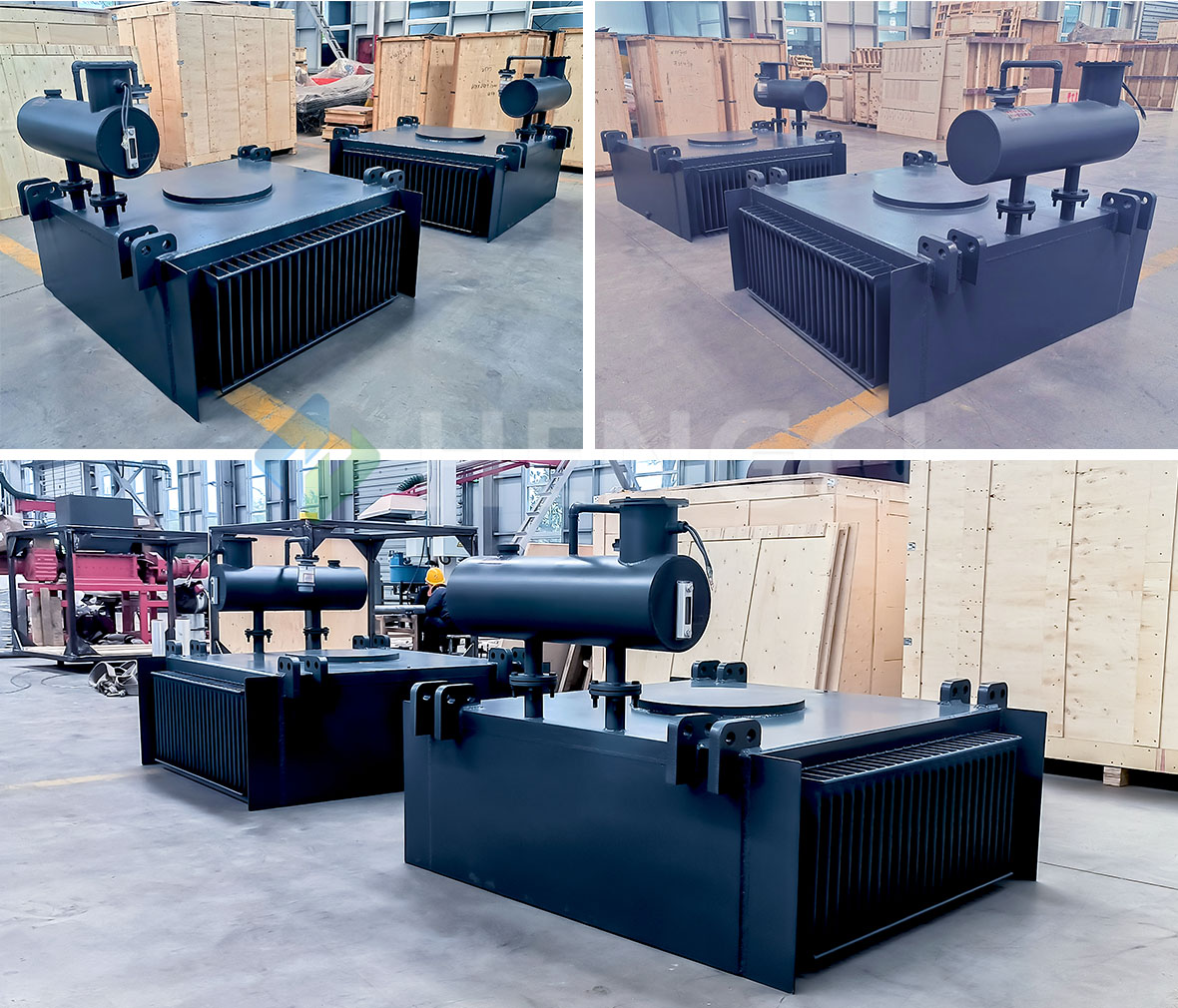

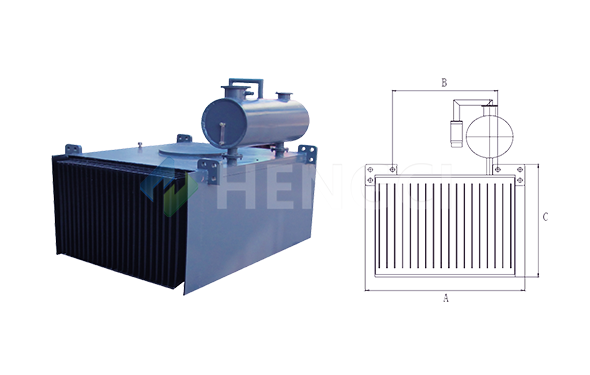

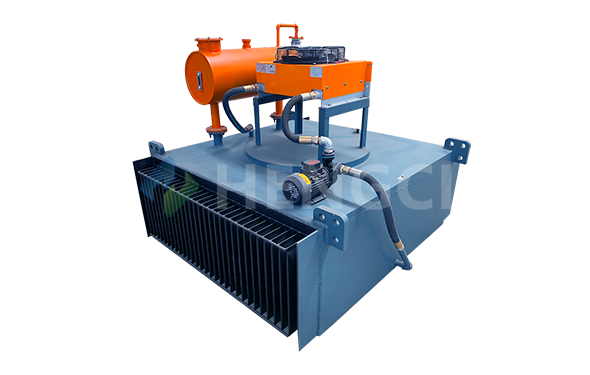

RCDE Oil-cooled overhead magnetic separator（overband magnet）
2. Superior magnetic circuit design
3. High-quality core materials
4. Advanced insulation technology
5. Fully sealed protection design
one.Product Introduction
two.Product Principle
The RCDE oil-cooled overhead magnetic separator (overband magnet) operates based on the principle of electromagnetic induction, generating a high-intensity magnetic field through an optimized magnetic circuit design. The equipment employs forced oil circulation cooling technology, where transformer oil circulates within a closed system, effectively removing the heat generated by the excitation coil during operation and ensuring the equipment's temperature rise is consistently kept at an extremely low level (≤50℃). The core is made of high-permeability cold-rolled silicon steel sheets, significantly reducing hysteresis losses. Combined with the excitation coil completely immersed in transformer oil, this forms a stable, efficient, and durable magnetic system, enabling the RCDE oil-cooled overhead magnetic separator (overband magnet) to precisely adsorb and remove ferromagnetic impurities.
three.Product Advantages
- The RCDE Oil-cooled overhead magnetic separator (overband magnet) employs mature forced oil circulation cooling technology, resulting in extremely low temperature rise (≤50℃).
- This ensures continuous and stable operation of the equipment and extends its service life.
- Computer-optimized magnetic circuit design results in deep magnetic penetration and a high magnetic field gradient.
- Low magnetic loss, strong iron removal capability, and significantly improved efficiency.
- The RCDE Oil-cooled overhead magnetic separator (overband magnet) uses a high-permeability cold-rolled silicon steel sheet core, reducing hysteresis losses.
- This enhances magnetic field stability and improves energy utilization efficiency.
- The excitation coil uses impregnation and curing technology, completely immersed in transformer oil.
- Excellent moisture-proof, dust-proof, and corrosion-proof performance.
- The RCDE Oil-cooled overhead magnetic separator (overband magnet) features a perfect sealing structure, adaptable to various harsh environments.
- Low maintenance requirements and reliable and safe operation.
four.Industry Applications
RCDE oil-cooled overhead magnetic separators (overband magnets) are widely used in the following fields:
- Iron and Steel Metallurgy: Raw material yards, sintering plants, blast furnace feeding systems
- Ports and Terminals: Large bulk cargo terminal conveying systems
- Power Energy: Coal conveying systems for thermal power plants, coal processing enterprises
- Mining: Large-scale mine crushing and screening systems
- Cement and Building Materials: Raw material preparation and finished product processing production lines
- Chemical Raw Materials: Large-scale raw material processing and refining processes
