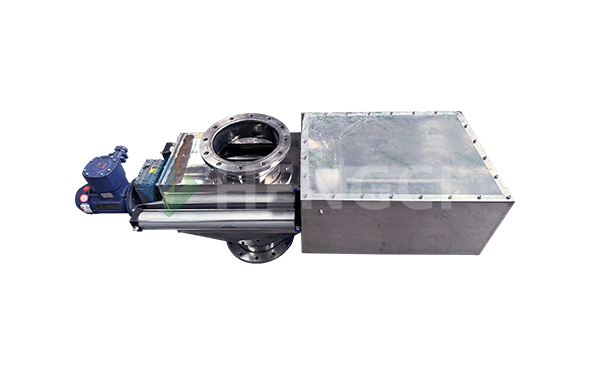

CBZ Permanent rotating magnetic field separator
2. Built-in programmable timer allows for flexible setting of cleaning frequency; achieves fully automated operation, reducing manual intervention.
3. Suitable for fine powders of 10-500 mesh; supports various installation methods including free fall and pipeline series connection.
4. All-stainless steel sealed shell, meeting hygiene standards; standard inlet diameter 150-500mm, custom production supported.
5. Automatic cleaning, low maintenance costs; continuous operation ensures stable production efficiency and product quality.
one.Product Introduction
two.Product Principle
The CBZ Permanent Rotating Magnetic Field Separator operates based on dynamic magnetic separation technology. Inside the device, a motor-driven assembly of stainless steel magnetic bars continuously rotates, creating a dynamic magnetic field. When material passes through the working area, ferromagnetic impurities are effectively attracted by the rotating magnetic bars. Following a preset timer program, the magnetic bar assembly automatically moves to the cleaning area to remove impurities, then returns to the working position to continue operation. This innovative design of the CBZ Permanent Rotating Magnetic Field Separator prevents material blockage while ensuring full contact between the magnetic bars and the material, achieving efficient and continuous iron removal.
three.Product Advantages
- CBZ Permanent Rotating Magnetic Field Separator features a rotating magnetic rod design, effectively preventing material agglomeration and clogging.
- A powerful magnetic system ensures precise capture of fine iron particles.
- CBZ Permanent Rotating Magnetic Field Separator uses a programmable timer to flexibly set the cleaning cycle based on iron content.
- Fully automated operation reduces manual intervention.
- Handles a wide particle size range, suitable for fine powders from 10-500 mesh.
- Supports various installation methods including free fall and pipeline series connection.
- CBZ Permanent Rotating Magnetic Field Separator features a fully sealed stainless steel housing, meeting hygiene standards.
- Standard nozzle diameter 150-500mm, custom production supported.
- Automated cleaning significantly reduces maintenance costs.
- Continuous operation capability ensures production efficiency and product quality.
four.Industry Applications
- Food Industry: Purification of raw materials such as flour, starch, and seasonings
- Chemical Industry: Iron removal from plastic granules, pigments, and fine chemical raw materials
- Pharmaceutical Manufacturing: Removal of metallic impurities from raw materials and excipients
- Building Materials Processing: Purification of quartz sand, potassium feldspar, mica powder, etc.
- Environmental Recycling: Treatment of fly ash and recycled powder materials
- Fine Ceramics: Quality improvement of glazes and ceramic powders
