Self-Cleaning Overband Magnetic Separator for Mining Operations

author: hengci

2026-08-26

Mining is built around continuous material movement. Ore leaves the extraction area, travels through conveyors, enters crushers and screens, and continues through multiple stages of processing. When unwanted steel enters this flow, even a single piece can interrupt an otherwise stable operation.

This is why magnetic iron removal plays an important role in modern mining.

A Self-Cleaning Overband Magnetic Separator is installed above a conveyor to continuously extract ferrous contaminants from the moving ore stream. Unlike manually cleaned magnetic systems, the automatic cleaning belt carries captured metal away from the magnetic field, allowing the separator to keep working without frequent operator intervention.

For mines handling large volumes of material, this can mean better equipment protection and fewer unnecessary interruptions.

Tramp Iron Is a Small Problem with a Large Consequence

Mining equipment is designed to handle rock and ore—not steel.

Bolts, broken excavator components, drill parts, steel wire, tools, and other metallic objects can enter the material during extraction, transportation, and processing.

If this material reaches a crusher, the result can be much more serious than a small contamination issue.

A Conveyor Iron Remover installed before critical equipment can intercept these objects while they are still on the conveyor.

This helps mining operations:

Reduce the risk of crusher and screen damage.
Prevent unexpected production stoppages caused by tramp iron.
Reduce manual inspection and metal removal work.
Protect downstream processing equipment from unwanted steel.
Maintain a more consistent material flow through the plant.

The objective is simple: remove the problem before the problem reaches the machine.

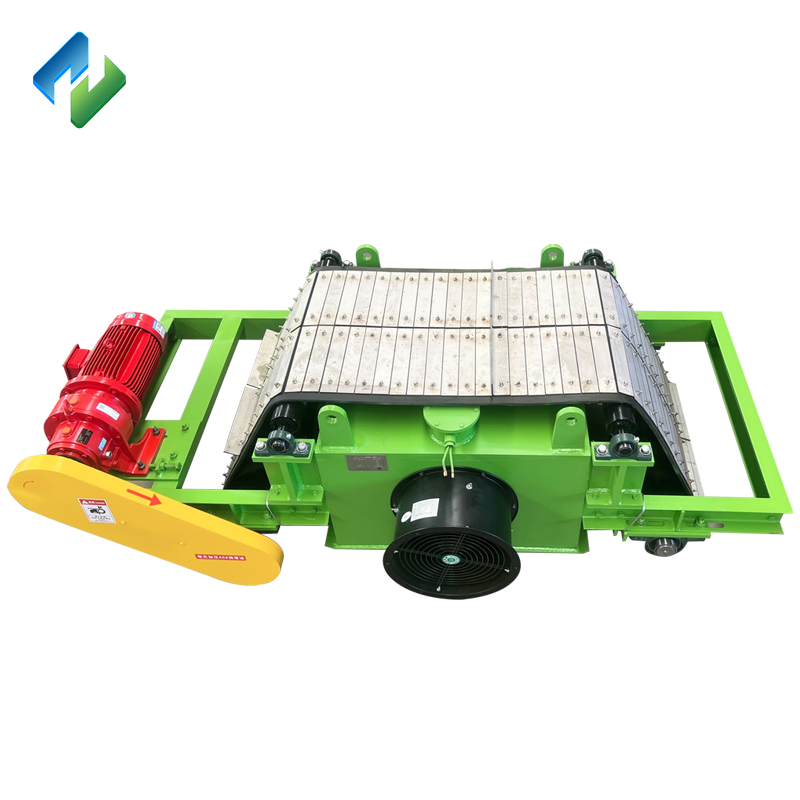

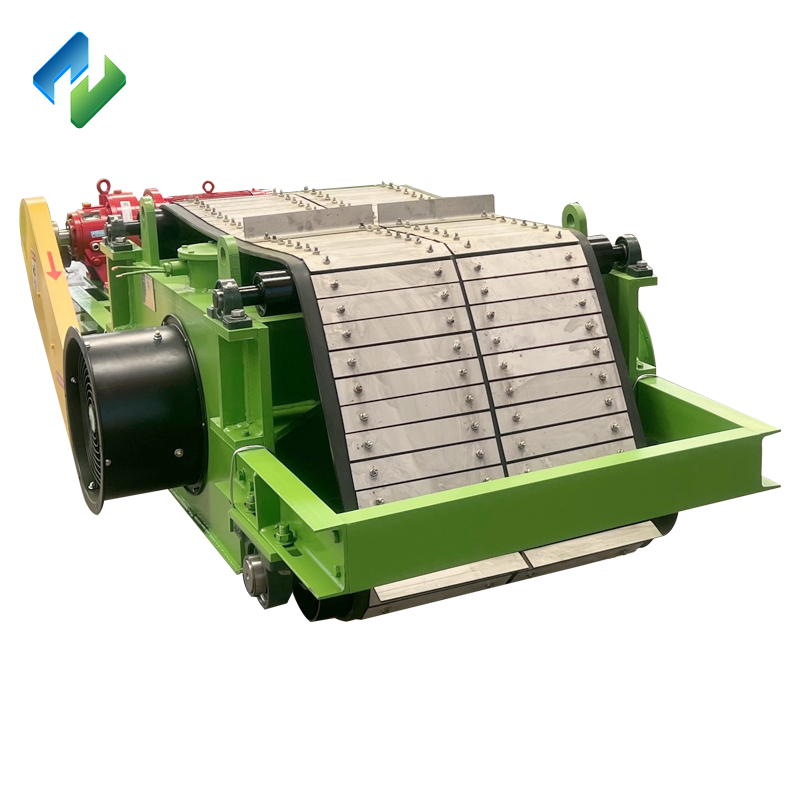

Self-Cleaning Overband Magnetic Separator

Why Self-Cleaning Matters in Large Mining Plants

A magnetic separator that needs frequent manual cleaning can become a maintenance task of its own.

Large mining conveyors may operate continuously for long shifts, moving substantial quantities of ore. When iron is captured, operators need a system that can remove it automatically rather than stopping production to clean the magnetic surface.

A Self-Cleaning Overband Magnetic Separator solves this through a continuously moving discharge belt.

The magnetic system attracts ferrous objects from the ore. The cleaning belt then transports the captured metal away from the magnetic zone and releases it at a designated discharge point.

The main conveyor continues operating throughout the process.

This makes automatic cleaning particularly valuable for high-throughput mines where equipment availability directly affects production output.

Where Magnetic Iron Removal Fits into a Mining Plant

There is no single location where magnetic separation is useful.

The best position depends on the material flow and the equipment that needs protection. In many mining operations, magnetic separation is installed before crushers or other machines where tramp metal could cause serious damage.

A typical process may look like:

Mining → Crushing → Screening → Conveying → Grinding → Mineral Processing

A Conveyor Iron Remover can be placed at strategic points within this system to intercept unwanted ferrous material before it reaches vulnerable equipment.

Early removal is especially important when the next processing stage involves expensive machinery or equipment that is difficult to stop and repair.

From Iron Ore to Coal and Aggregates

Mining operations process very different types of materials, but the need for tramp iron protection is widely shared.

In iron ore processing, magnetic separation can help remove unwanted steel objects introduced during mining and material handling.

In coal mining, the separator protects crushers and conveyors from tools, bolts, and other ferrous debris that may enter the coal stream.

In quarry and aggregate operations, it can remove steel fragments from crushed stone and recycled mineral materials.

The application may change, but the purpose remains the same: protect the processing line while keeping bulk material moving continuously.

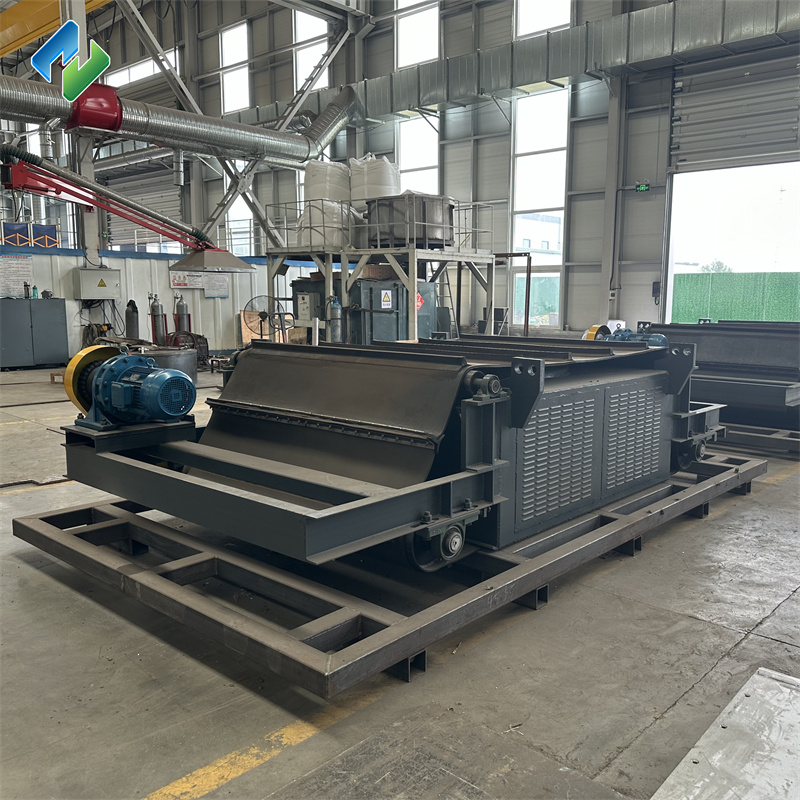

Electromagnetic Belt Separation for Heavy-Duty Conditions

An Electromagnetic Belt Separator generates its magnetic field through an electromagnetic coil, providing strong magnetic attraction for ferrous objects moving beneath the separator.

This technology can be particularly useful when mining operations need to remove larger or heavier pieces of tramp iron from a deep material burden.

The magnetic system, conveyor belt, cooling arrangement, and supporting structure are designed to work together under demanding industrial conditions.

For mines operating in dusty environments and long production cycles, reliable thermal management and robust construction are also important considerations.

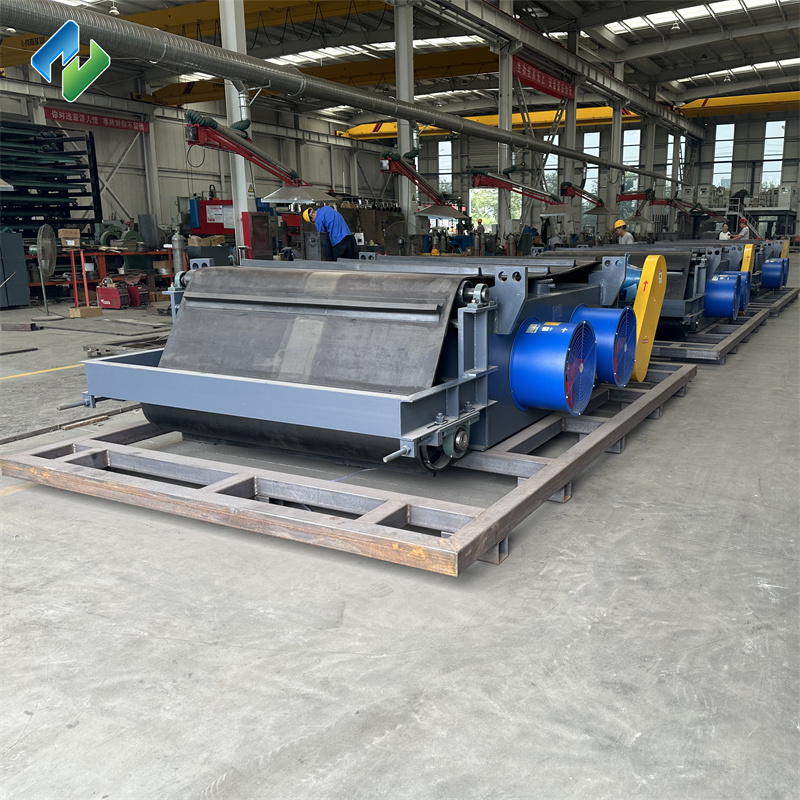

Air Cooling for Continuous Mining Applications

Mining environments place high demands on magnetic separation equipment. Dust, long operating hours, heavy

material loads, and continuous conveyor operation all require the equipment to maintain stable performance.

The air-cooled design of Hengci's electromagnetic belt separator helps manage operating temperature without relying on water cooling.

This can simplify the equipment configuration and make it suitable for locations where a water-cooling system is inconvenient or undesirable.

Combined with automatic iron discharge, the system is designed for long-duration operation with reduced manual intervention.

Protecting the Equipment That Keeps the Mine Running

The value of a magnetic separator is often measured by what does not happen.

A crusher does not stop because a steel component entered the feed.

A conveyor does not need to be shut down for manual metal removal.

A production shift does not lose hours because of an avoidable tramp-iron incident.

A Self-Cleaning Overband Magnetic Separator acts as a preventive protection point within the mining process.

For large-scale operations, preventing one major equipment failure can be considerably more valuable than the metal recovered by the separator itself.

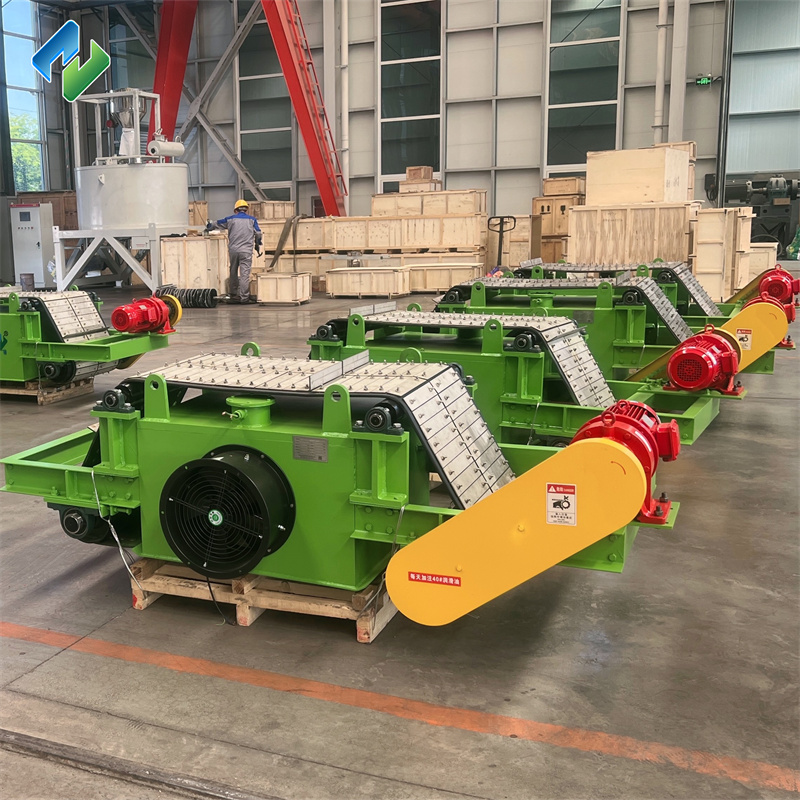

Hengci Solutions for Mining Conveyor Protection

Hengci manufactures magnetic separation equipment for mining, aggregate, coal, recycling, and bulk material handling applications.

Our Self-Cleaning Overband Magnetic Separator systems are developed for continuous conveyor operation and automatic ferrous metal removal.

Depending on the application, the equipment can be configured according to:

Conveyor width and belt speed
Material depth and throughput
Installation height
Expected tramp iron size
Required magnetic lifting performance
Operating environment and cooling requirements

This allows Hengci to provide a magnetic iron removal solution matched to the actual mining process rather than relying on a one-size-fits-all configuration.

A Practical Layer of Protection for Modern Mines

Mining production depends on thousands of components working together. Conveyors move the material, crushers reduce its size, screens classify it, and processing equipment turns it into a valuable product.

A piece of unwanted steel can disrupt that entire chain.

Installing a Conveyor Iron Remover above the conveyor provides a continuous line of defense against this type of contamination.

With automatic cleaning, electromagnetic lifting force, and an air-cooled design, the Electromagnetic Belt Separator provides mining operations with a practical way to reduce tramp-iron risks and protect critical equipment.

For mines focused on higher uptime, safer material handling, and more reliable production, magnetic iron removal is not simply an optional accessory—it is an important part of the conveyor system.
