No material blockage, no machine shutdown: Rotary magnetic drawer separator, solving the pain point of iron removal in powder processing.

author: hengci

2026-02-27

Powder production lines in the food, chemical, and plastic recycling industries are often plagued by two major problems: ferromagnetic impurities affect quality, and materials like flour and milk powder, which are prone to bridging, clog traditional iron removal equipment. Looking for a highly efficient iron removal, anti-clogging, and minimal downtime device? A rotary magnetic drawer separator is your production line savior.

Three Major Pain Points of Traditional Magnetic Drawer Separators

The fixed magnetic rod design of traditional magnetic drawer separators works well for dry materials, but fails miserably with high-moisture, oily, or unevenly sized materials (such as cocoa powder and plastic fragments):

Material Bridging and Clogging:Material bridges easily form between the magnetic rods, leading to poor material flow and even complete line shutdown.
Frequency Cleaning:The magnetic rods become coated with material while adsorbing iron filings, causing rapid weakening of the magnetic force, necessitating frequent disassembly and cleaning.
Blind Spots in Iron Removal: When material flow is slow or stagnant, iron impurities have difficulty contacting the magnetic rods, allowing micron-sized iron powder to escape.

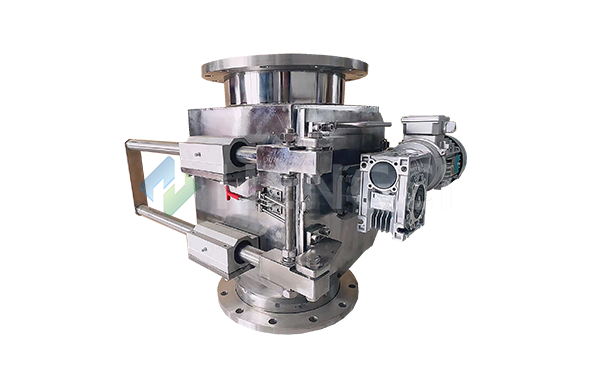

Rotary Magnetic Drawer Separator: Solving Material Blockage and Iron Removal Problems at the Root

The core breakthrough of our rotary magnetic drawer separator is its motor-driven rotating magnetic rod assembly. The rods rotate slowly in the material flow, bringing three key advantages:

Anti-Blocking:The rotating magnetic rods break up material "bridges," allowing material to pass smoothly like a mixer, completely eliminating blockages.
High-Efficiency Iron Removal:Dynamically agitating the material flow allows even deeply embedded iron filings to collide with the magnetic poles, significantly improving the capture rate of ≥30μm fine iron powder.
Self-Cleaning and Magnetic Retention:Prevents fibers and damp materials from entangled in the magnetic rods, reducing magnetic coverage and ensuring longer stable operation.

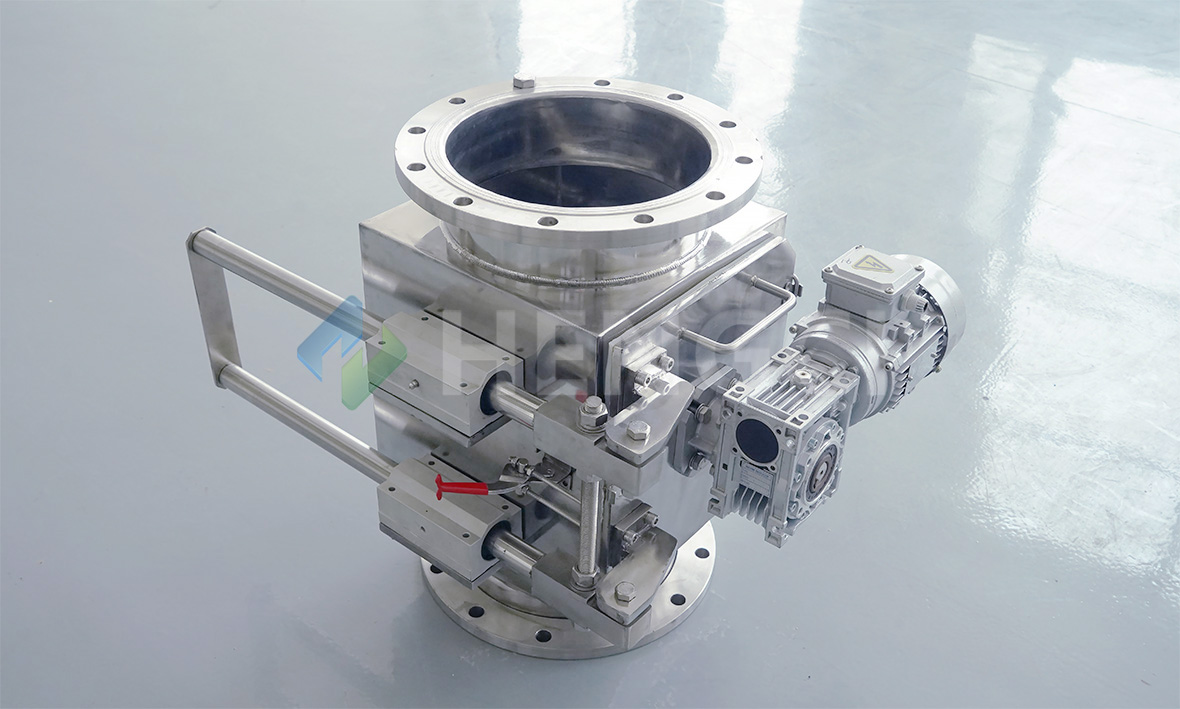

Semi-Automatic Cleaning:Worry-Free, Labor-Saving, and Cost-Effective

This rotary magnetic separator strikes a perfect balance between ease of use and cost: no need to stop and disassemble the machine, and no need for a complex fully automatic PLC system. Once the magnetic rods are saturated, the operator can easily remove the magnetic rod assembly using the built-in mechanical lever for external cleaning.

For small and medium-sized production lines and workshops requiring manual inspection, the semi-automatic design of the rotary magnetic separator not only offers lower procurement costs but also avoids issues such as sensor false alarms and pneumatic malfunctions in fully automatic equipment. Cleaning can be completed during shift changes, ensuring no production disruption.

Multi-industry Compatibility, Standard Choice

With its excellent anti-clogging and iron removal capabilities, the rotary magnetic separator has become standard equipment in multiple industries:

Food Processing: Handles easily agglomerated materials such as flour, milk powder, and seasonings, safeguarding food safety.
Plastic Recycling: Removes iron impurities from plastic fragments, protecting downstream extruders and injection molding machines.
Chemical and Pharmaceutical Industries: Purifies high-requirement powder raw materials, complying with EC1935/2004 food and drug contact regulations.
Ceramics and Glass: Removes fine iron from quartz sand and feldspar powder, improving the whiteness and quality of finished products.

Key Technological Highlights

Strong Magnetic Configuration: Rare earth neodymium iron boron magnets with a surface magnetic force ≥9000 Gauss, easily capturing micron-sized iron filings.
Food-grade material: SUS304/316L stainless steel shell, polished for a clean finish, corrosion-resistant and easy to clean.
Flow diversion efficiency: The rotary magnetic separator features a built-in flow divider to disperse material flow, ensuring full contact between the material and the magnetic rod.
Custom sizes available: 8"x8"—18"x18" standard sizes, customizable to fit on-site piping and flanges.

Conclusion

This rotary magnetic drawer separator is a comprehensive solution for removing iron from "difficult-to-flow materials," helping you reduce downtime, lower maintenance costs, and improve product purity.

Is your production line plagued by material blockage and iron impurities? Contact us for free material testing and selection advice!
