No manual effort required! A fully automatic magnetic drawer filter makes iron removal from industrial powders easier.

author: hengci

2026-02-03

Whether in ceramics, food processing, pharmaceuticals, or fine chemicals, who hasn't struggled with metallic impurities in their products? Those micron-sized iron filings, invisible to the naked eye, not only compromise product purity but can also damage expensive production equipment, and in severe cases, even necessitate recalls of entire batches, causing significant losses for businesses.

Traditional drawer-type magnetic separators, while effective at blocking these magnetic contaminants, are simply too cumbersome for factory managers due to the repeated manual pulling and cleaning. This not only leads to impurity buildup due to delayed cleaning but can also cause material recontamination. If you're looking for a device that maintains strong magnetic iron removal while enabling intelligent operation, then a fully automatic magnetic drawer filter is definitely a "good helper" for your production line.

What exactly is a fully automatic magnetic drawer filter?

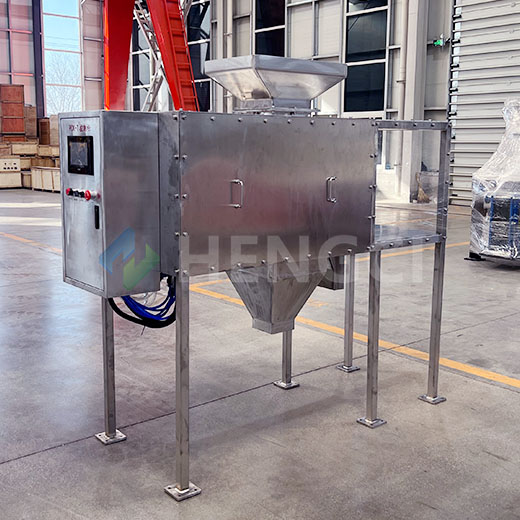

The fully automatic magnetic drawer filter is an automated cleaning and iron removal device specifically designed for dry powder and granular materials, such as flour, sugar, spices, plastic particles, and silica sand. Its core upgrade compared to the manual version is the addition of a pneumatic control system and a double-drawer/pull-out magnetic core design. When the material falls freely from the vertical pipe and passes through the magnetic grid, the rare-earth magnetic rods inside (mostly made of neodymium iron boron, with a surface magnetic force of 10,000-12,000 Gauss) tightly attract iron impurities. Its "automatic" feature is far more convenient than the manual version: once the preset time is reached, or the equipment pressure difference reaches the set value, the magnetic core automatically retracts from the material flow, and the scraper (stripper) scrapes off and removes the adsorbed impurities. Afterward, the magnetic core automatically resets. The entire process requires no machine shutdown and no manual operation.

Key Highlights of the Fully Automatic Magnetic Drawer Filter

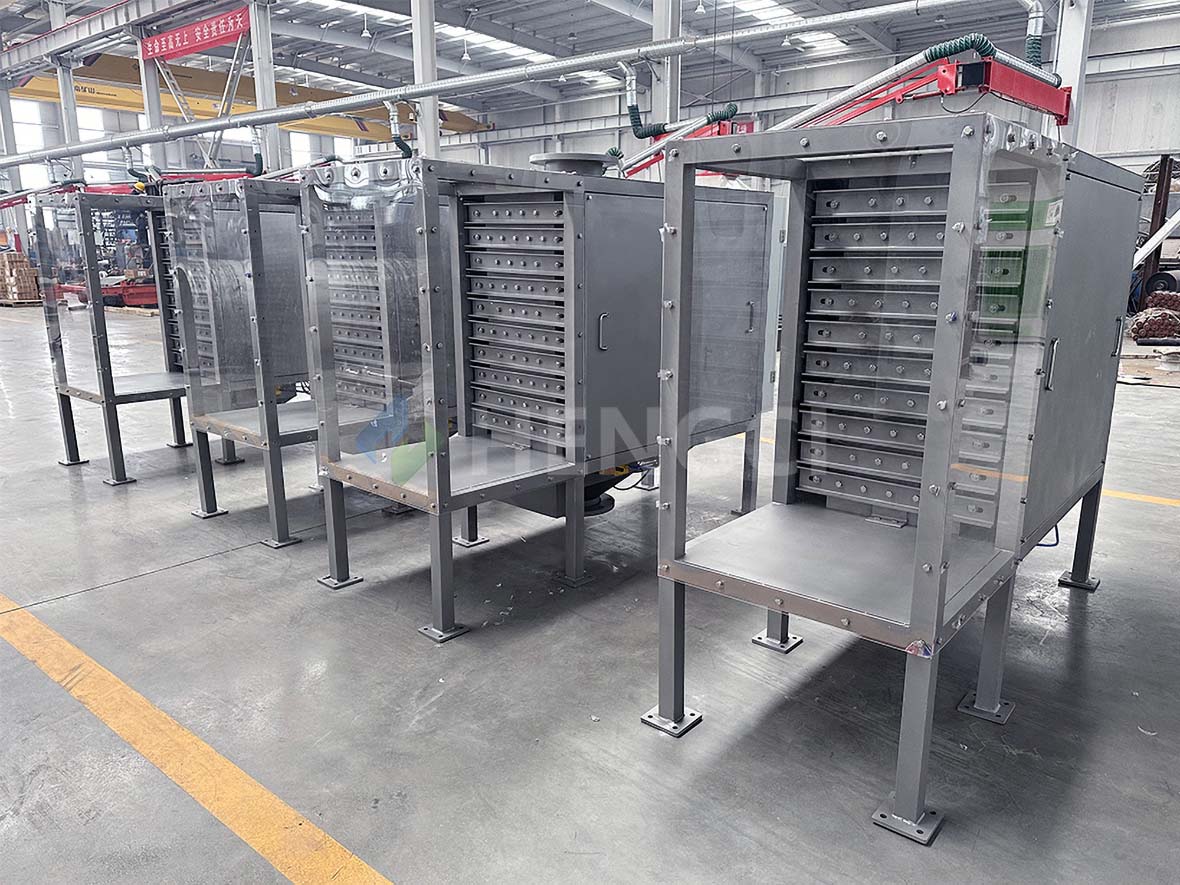

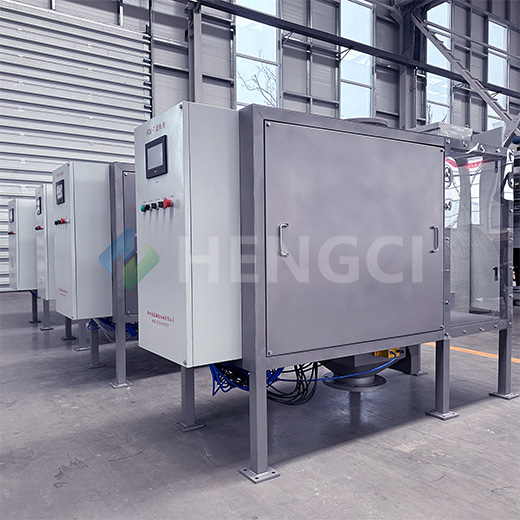

1. 24-Hour "Zero-Management" Continuous Production Many factories now operate 24/7, making manual cleaning of the iron remover difficult to keep up with. The fully automatic drawer filter is equipped with a PLC control system or timer relay, allowing for adjustable cleaning frequency. After the magnetic rods retract outside the material area, the iron filings attracted to them are scraped off by a stainless steel scraper and fall directly into the collection tank. If a double-drawer design is selected, it allows for "one set working, one set cleaning," meaning the other set of magnetic cores continues iron removal while the other is cleaning, ensuring the production line remains uninterrupted.

2. Ultra-Clean Iron Removal, Preventing Secondary Contamination

Many may worry: Can automatic cleaning remove all the iron filings? Don't worry, the automated design not only cleans thoroughly but is also more hygienic. The magnetic rod assembly only begins cleaning after it has completely retracted from the material area, ensuring that scraped-off iron impurities have no chance to mix into the finished product. Furthermore, the equipment uses 316L stainless steel, and the magnetic rod sleeves are mirror-polished, fully complying with FDA and GMP hygiene standards in the food and pharmaceutical industries.
3. Strong magnetic design, even micron-sized iron powder can be captured.

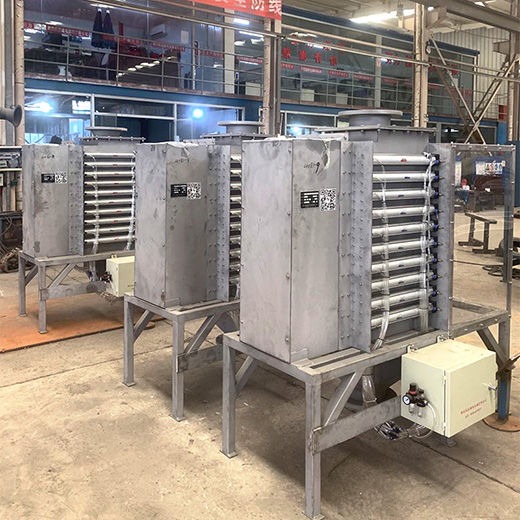

The Fully automatic magnetic filter uses rare-earth permanent magnet materials of N45 grade or higher. The magnetic rods are arranged in an alternating pattern, eliminating magnetic field blind spots and ensuring full contact between the material and the magnetic field. Even ultrafine powders with extremely poor flowability, or weakly magnetic paramagnetic contaminants, can be firmly attracted without leakage.
4. Customized to meet various complex working conditions.
The Fully automatic magnetic filter is not a standardized "part," but can be customized to your specific needs—whether it's pipe size, material temperature, flowability, or corrosiveness, it can be adapted.

High-temperature conditions: Special magnetic materials with a maximum temperature resistance of 350°C can be selected, allowing use even at high material temperatures.
Explosion-proof requirements: Equipped with ATEX-certified explosion-proof design and electrical safety interlocks, meeting the requirements for use in explosion-proof workshops.
Sealing requirements: Employs floating scraper seals or Sani-TIGHT compression seals to effectively prevent dust leakage and maintain a clean workshop.

Which scenarios are suitable for a fully automatic magnetic drawer filter?

Fully automatic magnetic filters are particularly suitable for the following scenarios with high production requirements:

Food/Dairy/Flour processing: Prevents metal fragments from contaminating finished products, protecting brand reputation and avoiding consumer complaints.
Engineering plastics/Recycling industry: Removes iron filings from injection molding machines and granulation lines, protecting expensive molds from scratches.
Lithium battery materials/Fine chemicals: Ensures high purity of raw materials, preventing the entire batch of products from being scrapped due to impurities.
Quartz sand/Ceramic glaze: Efficiently removes iron impurities, improving product whiteness and quality.

Why choose our fully automatic magnetic drawer filter?

As a professional magnetic separator manufacturer, we understand better than anyone the importance of iron removal for the final product. Our fully automatic magnetic filter is not simply a drawer with magnetic rods; it's an intelligent device combining fluid mechanics and magnetic circuit simulation technology. In addition, our design features these thoughtful highlights: **Super Strong Magnetic Rod Assembly:** Utilizing a double or multi-layer arrangement, the magnetic field penetrates deeply, maximizing the adsorption area and increasing iron removal efficiency. **Tool-Free Maintenance:** The unique quick-release locking design allows for drawer disassembly and assembly in seconds, even for occasional manual inspections, eliminating the need for cumbersome tools. **Robust and Durable:** The outer shell is made of 304/316L stainless steel, and the internal support structure is robust, ensuring the magnetic rods won't deform or break even under high-pressure material impacts.

Finally, a few words:

Industrial production is increasingly moving towards automation and intelligence. Choosing a reliable fully automatic magnetic drawer filter not only frees workers from tedious cleaning tasks but also reduces operating costs, ensuring more stable product quality and safer production. If your production line is troubled by iron impurities, or you want to reduce the hassle of manual cleaning, please contact our technical team. We will tailor a unique iron removal solution for you!
