A comprehensive analysis of the technical principles and application value of liquid pipeline magnetic separators.

author: hengci

2026-01-21

In industries such as fine chemicals, food processing, pharmaceuticals, ceramic glazes, and lithium battery raw material preparation, clear and pure fluids are the cornerstone of quality and the guarantee of long-term, stable equipment operation. However, a subtle yet highly destructive threat lurks within production processes: micron-sized ferromagnetic and weakly magnetic metal impurities. These may originate from raw materials, worn equipment, or accidental contamination, acting like "invisible assassins" in the production line. At best, they affect product color and purity, leading to defective products; at worst, they can scratch precision equipment, cause catalyst poisoning, and even pose serious safety hazards.

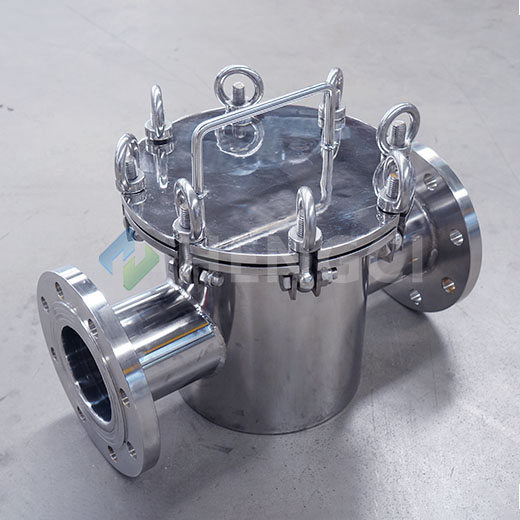

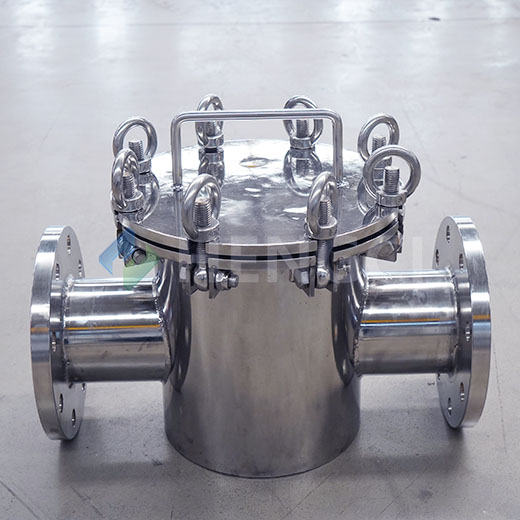

How can we establish an efficient and reliable "filtration barrier" for flowing liquids without interrupting production or altering existing processes? Traditional filters often struggle with extremely fine particles and are prone to clogging. This is where liquid pipeline magnetic separators, particularly magnetic rod pipeline separators, with their unique design concept, become indispensable purification guardians in modern process industries.

Not filtration, but precise "capture": The core intelligence of magnetic separation

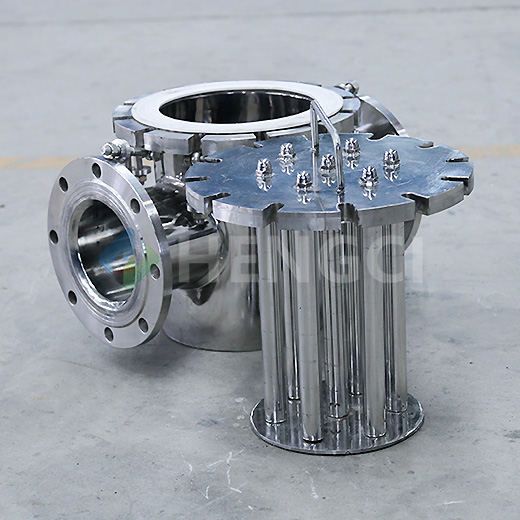

Unlike mechanical filtration, which relies on pore size for interception, pipeline magnetic separators utilize the physical principle of magnetic force. Their core design involves cleverly embedding powerful magnetic rods or magnetic systems made of high-performance rare earth permanent magnet materials (such as neodymium-iron-boron) inside or outside the pipeline.

When liquid containing metal impurities flows through this section of the pipeline covered by a strong magnetic field, regardless of whether the impurities are suspended particles or weak rust flakes, they are instantly captured by the magnetic field and firmly adsorbed onto the surface of the magnetic rods or a special area on the inner wall of the pipe. The pure liquid continues to flow forward unimpeded, with minimal pressure loss and very low energy consumption. This process is fully automatic and continuous, achieving true online, real-time purification.

Why choose pipeline magnetic rod separators? Four unparalleled advantages

Ultimate cleanliness guarantee: Grate magnetic separators achieve a removal rate of over 99% for magnetic impurities ranging from coarse particles to those as fine as 30 microns or even smaller, significantly improving the quality and consistency of the final product and meeting stringent industry standards.
Nearly zero-maintenance operation: No consumables, no filter element replacement required. After adsorption saturation, the magnetic rod can be easily and conveniently removed for cleaning, restoring it to like-new condition, significantly reducing long-term operating costs and the frequency of manual intervention.

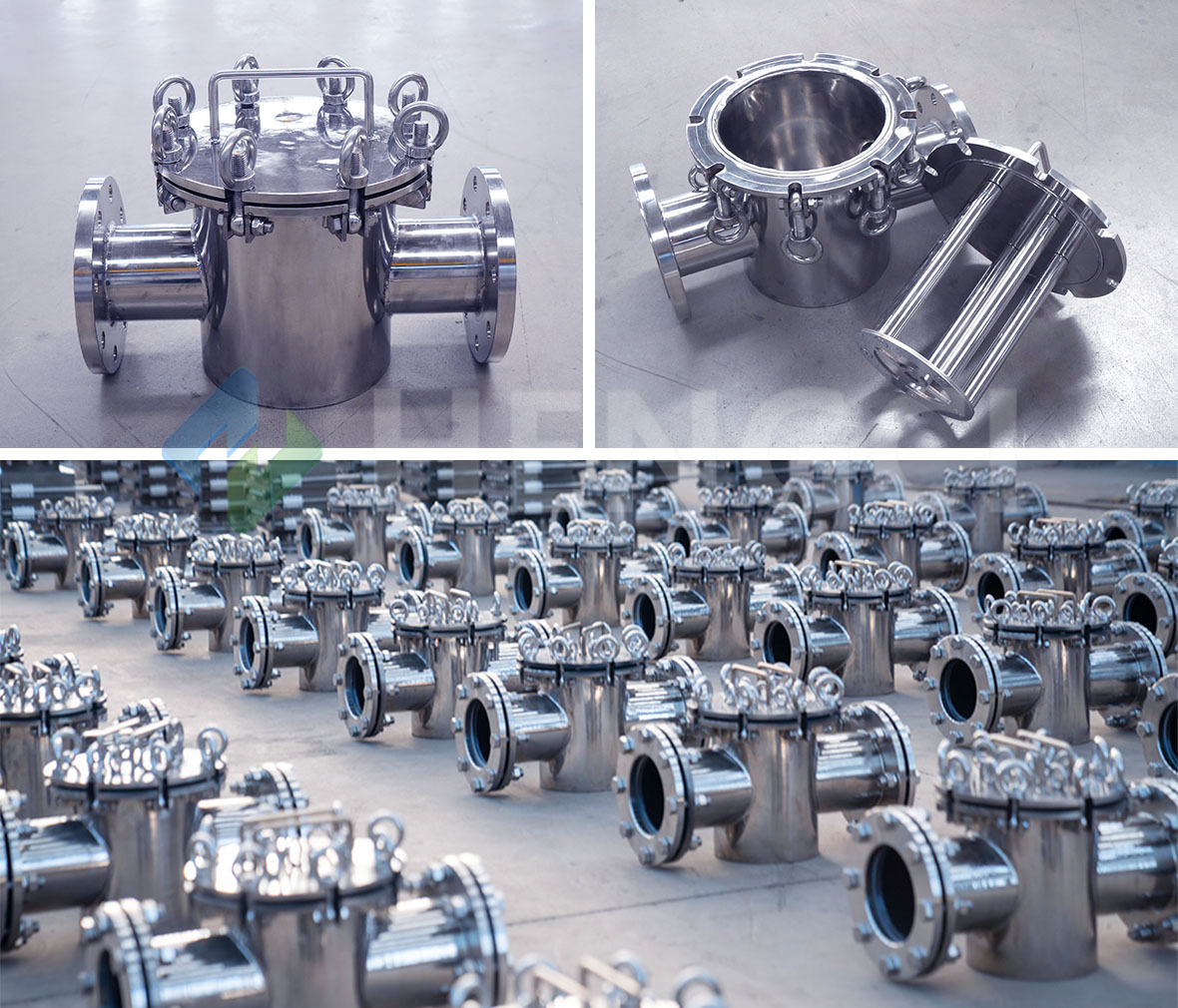

Seamless Integration, Flexible Adaptation: The grate magnetic separator uses standard flange connections and can be easily installed in any horizontal or vertical section of existing pipelines, minimizing changes to the original process flow. It offers a variety of materials (such as SS304, SS316L, wear-resistant lining) and diameters to suit various media, from corrosive chemicals to food-grade fluids.
Protecting Equipment, Preventing Disasters: The grate magnetic separator effectively prevents magnetic metal fragments from entering downstream pumps, valves, nozzles, spray towers, or reactors, avoiding abnormal wear, jamming, and expensive unplanned downtime. It is a "guardian angel" for production safety.

Application Scenarios: Invisible Protection, Visible Value

Food and Beverages: Protects the flavor and safety of syrups, juices, vegetable oils, beer, and condiments, removing metal particles that may be introduced during raw material processing and production.
Chemicals and Coatings: Ensures the purity of resins, pigments, solvents, and inks, preventing impurities from affecting chemical reactions or the color and gloss of the final product.
Pharmaceuticals and Biotechnology: Provides critical purification in pipelines for pharmaceutical liquids, intermediates, and purified water, meeting the stringent impurity control requirements of GMP standards.
Ceramics and New Energy: Protects glazes and lithium battery slurries (positive and negative electrode materials) from iron contamination, improving yield and product performance.
Plastics and Recycling Industry: Removes metal impurities from recycled plastic melts or liquid raw materials, protecting granulation molds and improving the quality of recycled materials.

Choose Professionalism, Choose Lasting Reliability

As a professional manufacturer deeply rooted in magnetic separation technology, we understand the fluid purification pain points of different industries. We offer not just individual equipment, but customized magnetic separation solutions based on our understanding of your process. From magnetic circuit design optimization and magnetic field strength configuration to material selection and structural design, every liquid pipeline magnetic separator is designed to achieve the highest capture efficiency and longest service life.
Contact us today to receive consultation and product selection advice for your specific process, building an impenetrable magnetic impurity defense line for your flowing production line.
