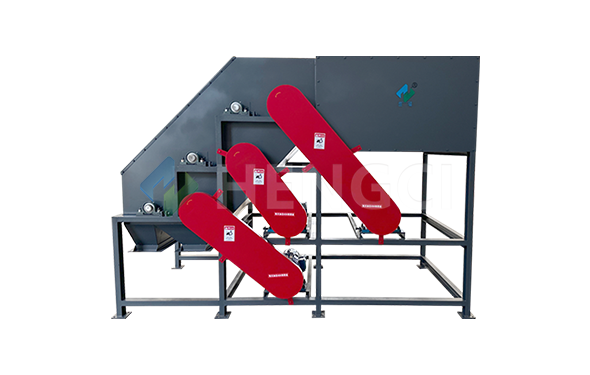

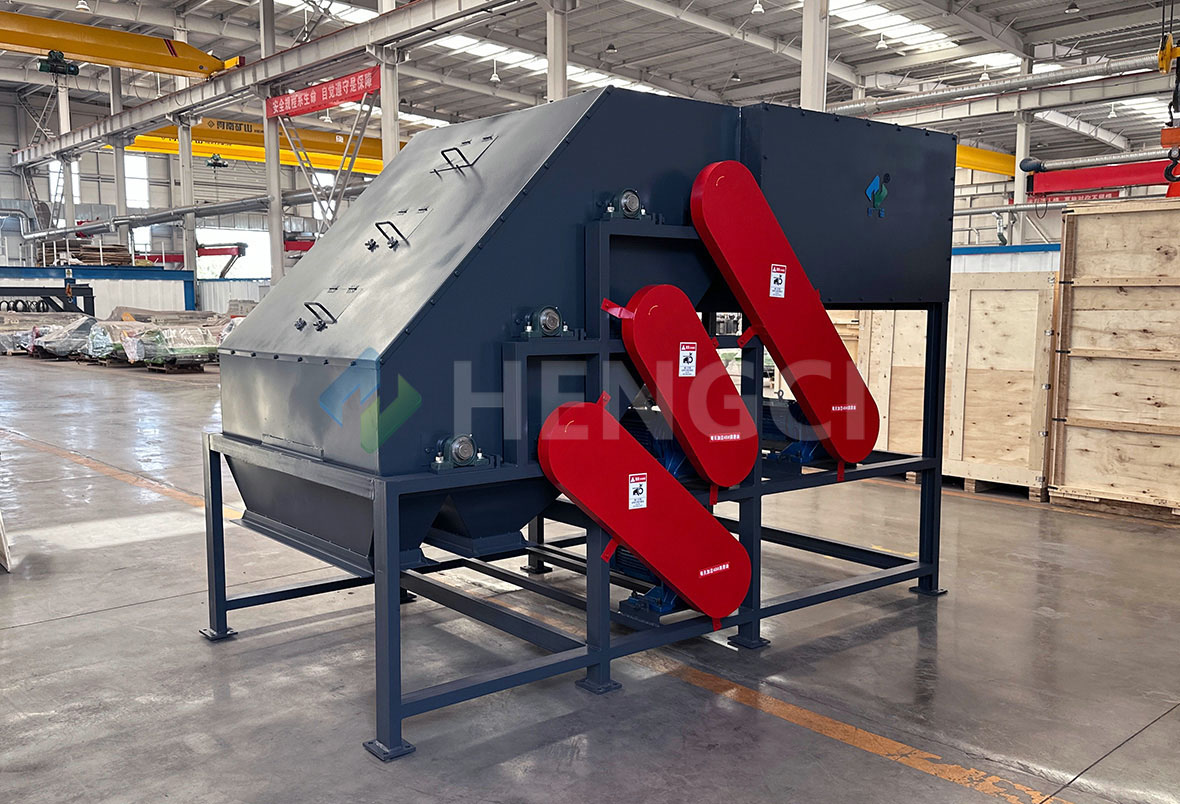

CTQ Automatic rare earth roll magnetic separator
2. Supports flexible combinations of 1-10 rollers, equipped with an independently adjustable precision feeding system, easily meeting different production volume, accuracy, and process layout requirements.
3. The sorting belt protects the magnetic rollers, achieving wear-free operation; the permanent magnet drive requires no electricity, significantly reducing maintenance and operating costs.
4. The gapless design ensures smooth material passage (maximum 50mm); the self-weight tensioning and correction device ensures long-term continuous and stable operation.
5. The high-gradient magnetic field ensures effective separation of weakly magnetic materials, resulting in high sorting efficiency and significantly improved product purity and economic benefits.
one.Product Introduction
two.Product Principle
The CTQ Automatic Rare Earth Roll Magnetic Separator operates based on an axial series-pole repulsive magnetic system, generating a magnetic field gradient on the surface of the magnetic roller that far exceeds that of traditional electromagnetic equipment. Material is uniformly fed into the sorting area through an independently designed feeding system. In this high-gradient magnetic field, weakly magnetic materials are attracted to the sorting belt by magnetic force and move with the rollers, while non-magnetic materials fall along an inertial trajectory, thus achieving precise separation. The CTQ Automatic Rare Earth Roll Magnetic Separator's gapless design ensures smooth passage of large particles (up to 50mm) and avoids clogging.
three.Product Advantages
- Utilizing an axial series-pole repulsive magnetic system, the magnetic field gradient is 3-4 times that of traditional electromagnetic equipment.
- New rare-earth permanent magnet materials ensure ultra-high and stable magnetic field strength.
- The CTQ Automatic rare earth roll magnetic separator supports flexible combinations of 1-10 rollers to meet different production and sorting accuracy requirements.
- An independently adjustable feeding system enables precise, timed, and quantitative feeding.
- The sorting belt protects the magnetic rollers, preventing wear and ensuring long-lasting magnetic force.
- Permanent magnet drive requires no electricity, significantly reducing operating costs.
- The CTQ Automatic rare earth roll magnetic separator features a gapless design, ensuring smooth material flow and handling particle sizes up to 50mm.
- A self-weight tensioning and correction device simplifies maintenance and ensures reliable operation.
- A high-gradient magnetic field ensures effective separation of weakly magnetic materials.
- High sorting efficiency effectively improves product purity and value.
four.Industry Applications
- Metal ore beneficiation: tailings removal and beneficiation of weakly magnetic minerals such as limonite and manganese ore
- Non-metal ore purification: refining of andalusite, sillimanite, kyanite, garnet, etc.
- Industrial mineral processing: purification of feldspar, quartz, rutile, zircon
- High value-added materials: impurity removal and quality improvement of materials such as corundum and diamond
- Chemicals and catalysts: removal of weakly magnetic impurities from abrasives and catalysts
FAQS
Are you a trading company or a factory?
Posted on
We are located in Shandong Province, China, with 200 employees and 2 workshops covering an area of 20000 square meters. Welcome to visit the factory anytime.
We are located in Shandong Province, China, with 200 employees and 2 workshops covering an area of 20000 square meters. Welcome to visit the factory anytime.
Do you provide sampling services?
Posted on
Yes, we provide free sample service. After receiving your sample, we will arrange mineral processing test and provide equipment solutions based on the data.
Yes, we provide free sample service. After receiving your sample, we will arrange mineral processing test and provide equipment solutions based on the data.
Is the product internationally certified?
Posted on
Yes, our equipment is fully certified and complies with market industry standards (such as CE, UL, ISO, etc.).
Yes, our equipment is fully certified and complies with market standards.
Can we produce customized products?
Posted on
Yes, our products can provide customized services, and our professional technicians will provide you with equipment drawings and solutions according to your requirements.
Yes, our products can provide customized services, and our professional technicians will provide you with equipment drawings and solutions according to your requirements.
How long is the warranty period for your products?
Posted on
The warranty period is 1 year, please consult sales for details. We will provide lifetime technical support services and provide spare parts at the lowest price.
The warranty period is 1 year, please consult sales for details. We will provide lifetime technical support services and provide spare parts at the lowest price.
How long is the production cycle?
Posted on
Normally it is about 15 to 30 days, unless there are special circumstances, it may take longer.
Normally it is about 15 to 30 days, unless there are special circumstances, it may take longer.
Learn about Hengci
Shandong Hengci Technology Co., Ltd. was established in 2015 with a registered capital of 22 million RMB. It is a professional manufacturer of magnetic separation equipment, including dry magnetic separators, wet magnetic separators, and iron removers (permanent magnetic and electromagnetic types). The company has 150 employees, holds 13 patents, and possesses qualifications such as high-tech enterprise certification.
