Permanent Overband Magnetic Separator for an Aggregate Plant in Indonesia
At a crushed stone and aggregate plant in Central Java, Indonesia, the production problem was not the rock itself.
The bigger concern was what occasionally arrived with it.
After blasting, excavation and loading, the raw feed could contain pieces of steel from worn machine parts, broken drill components, bolts and other ferrous objects. Some larger pieces were easy to notice before entering the crusher. Smaller pieces were much more difficult to identify.
Once they entered the crushing circuit, the consequences could be much more serious.
The customer was looking for a continuous way to remove tramp iron from the conveyor stream before it reached the next crusher and screening stages. A Permanent Overband Magnetic Separator was installed above the conveyor to provide automatic ferrous metal removal while the aggregate continued moving through the production line.
The project was focused on a simple objective: keep unwanted iron out of the crushing process without slowing down aggregate production.
The Problem Was Hidden Inside a Normal Aggregate Feed
In a quarry environment, the material entering the plant can look completely normal.
Large pieces of limestone, basalt or other rock move along the conveyor toward the crushing stage. At the same time, a small amount of unwanted metal may be buried inside the material.
The source is not always the same.
It can come from excavator components, loader buckets, drill tools, maintenance work, damaged screens, conveyor components or other equipment used around the quarry.
For an aggregate producer, even one large piece of tramp iron can become a production problem if it reaches a crusher.
Industry equipment suppliers specifically identify tramp metal as a risk to crushers, conveyors and other downstream equipment in aggregate processing.
At the Indonesian customer site, the decision was therefore made to remove ferrous contamination before it reached the more vulnerable part of the process.
Why the Customer Added a Permanent Overband Magnetic Separator
The plant already had a conventional crushing and screening arrangement.
What it lacked was an automatic magnetic separation stage positioned over the material conveyor.
A Permanent Overband Magnetic Separator was selected because the equipment could operate continuously above the conveyor and capture ferrous objects while the aggregate continued moving underneath.
Unlike a manually cleaned magnet, the self-cleaning configuration uses a separate belt to carry captured iron away from the magnetic field and discharge it into a collection area.
This type of continuous self-cleaning operation is commonly used in quarrying, aggregate processing and mobile crushing applications.
For the customer, this meant that operators did not have to stop the conveyor every time accumulated iron needed to be removed.

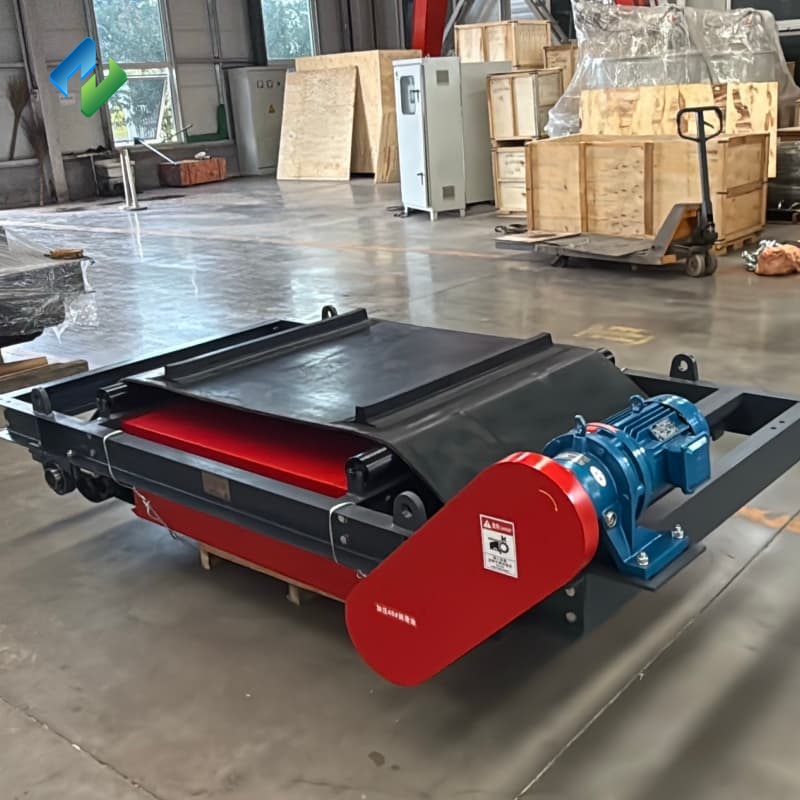

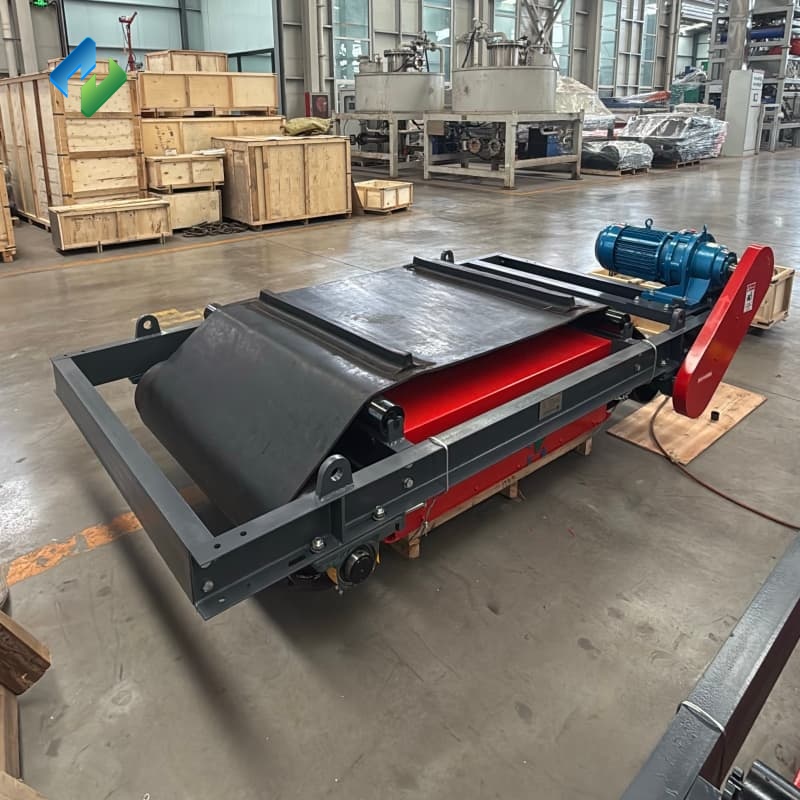

Where the Conveyor Belt Magnet Was Installed
The separation point was positioned above a conveyor carrying crushed aggregate toward the downstream processing equipment.
This location was important.
A magnetic separator installed too far downstream may protect only part of the process. Installed before a critical crusher, it can intercept damaging ferrous objects before they enter the machine.
The Conveyor Belt Magnet therefore became part of the plant's equipment-protection strategy rather than simply a product-cleaning device.
The magnetic unit was suspended above the moving material, with the operating distance selected according to the conveyor width, material burden and expected tramp iron size.
These installation factors matter because magnetic separation performance depends on the distance between the magnet and the material as well as conveyor speed and burden depth.
Removing Tramp Iron Before the Crusher
The first production runs made the purpose of the system easy to understand.
The aggregate continued along the conveyor as normal.
When a piece of ferrous metal entered the magnetic field, the magnet attracted it upward from the material burden. The captured metal was then carried away from the product stream by the moving cleaning belt.
The rock continued toward the next process.
The iron was discharged separately.
This simple separation route is particularly valuable in aggregate plants because the material flow can be heavy, continuous and abrasive. Suspended permanent magnets are specifically used for removing unwanted iron from heavy loads of conveyed material and protecting processing machinery.
For the Indonesian plant, the Permanent Overband Magnetic Separator was therefore treated as a protective stage between raw material handling and downstream crushing.
The Difference Between Manual Inspection and Continuous Protection
Manual inspection still has a place in quarry operations.
Operators can identify large pieces of steel before feeding the crusher, particularly during equipment loading or stockpile management.
The problem is that manual inspection cannot guarantee that every piece of tramp iron will be found.
A buried bolt, steel fragment or broken machine component can move through the feed unnoticed.
A Suspended Belt Magnetic Separator provides a second layer of protection because it works continuously while the conveyor is running.
The operator does not need to predict when the next piece of iron will appear.
The magnetic field is already present when the contamination reaches the separation zone.
That difference becomes increasingly important as aggregate production volume increases.

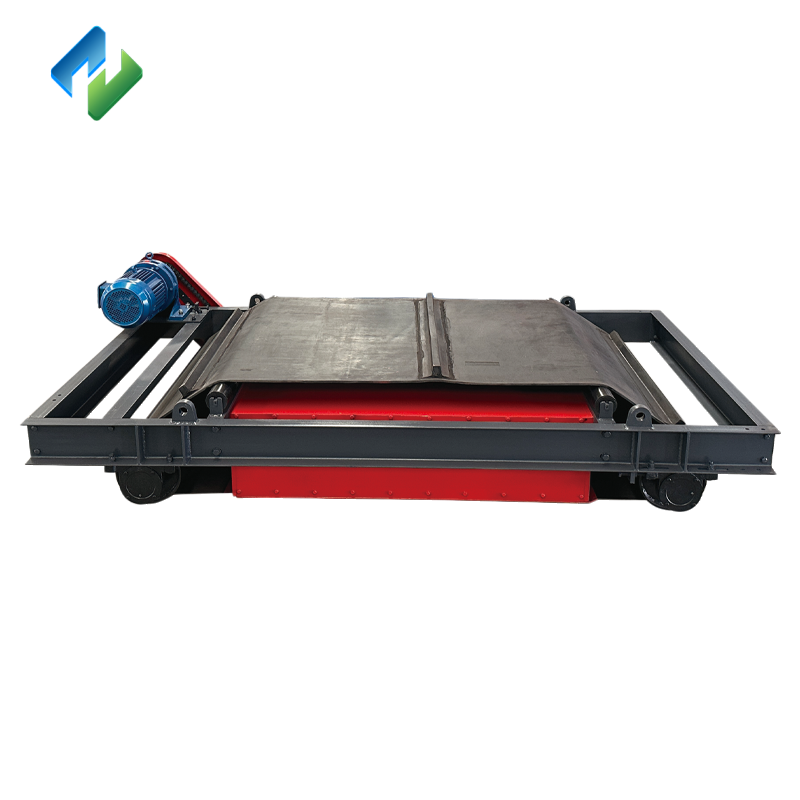

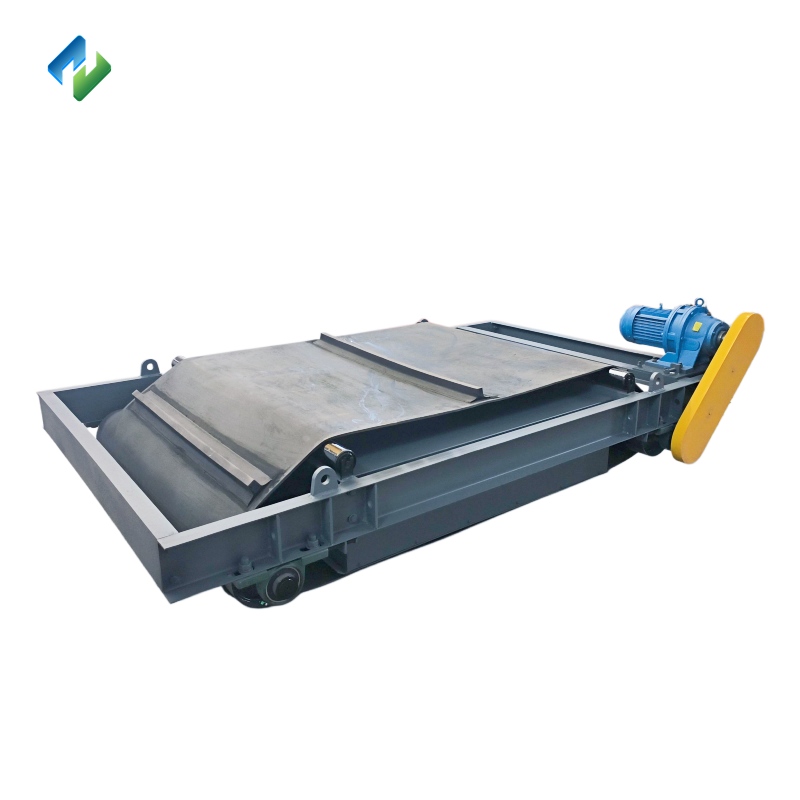

A Suspended Belt Magnetic Separator for Heavy Aggregate Loads
Aggregate plants present a demanding environment for magnetic equipment.
The feed can contain large and irregular rock particles, and the conveyor may operate at relatively high speed.
The magnet therefore needs to provide sufficient magnetic reach to capture ferrous objects from the material burden rather than only from the surface.
A Suspended Belt Magnetic Separator can be configured for different conveyor widths and installation conditions.
The actual magnetic circuit and suspension height need to be selected according to the material depth, belt speed, expected tramp iron and installation position.
Cross-belt and inline arrangements are both used in industrial applications, with the appropriate configuration depending on space, conveyor layout and separation requirements.
For the customer site, the objective was not simply to install the strongest possible magnet. The equipment needed to match the actual conveyor and material conditions.
What Happened to the Captured Iron
One practical detail that mattered to the customer was the discharge of the separated metal.
Removing the iron from the aggregate is only half of the process.
The captured material also needs to be moved away from the magnetic zone so that it does not accumulate on the separator.
The self-cleaning belt handles this automatically.
As the belt moves beyond the effective magnetic field, the captured ferrous material is released and falls into a designated collection area.
This allows the Conveyor Belt Magnet to continue working without regular manual cleaning.
Self-cleaning suspended permanent magnets are designed specifically to carry accumulated tramp iron away from the magnet face and discharge it separately.
Protecting More Than the Crusher
Although crusher protection was the main reason for the installation, the magnetic separation stage provided benefits beyond one machine.
Ferrous objects can also damage conveyor belts, screens and other equipment if they remain in the material stream.
Sharp metal pieces can create cuts or tears in conveyor belting. Larger objects can become trapped in transfer points or interfere with downstream equipment.
Aggregate industry guidance identifies tramp metal as a potential cause of equipment damage, unplanned downtime and reduced production efficiency.
The customer therefore viewed the Permanent Overband Magnetic Separator as part of a broader approach to equipment protection.
Removing the contamination earlier reduces the number of opportunities for ferrous objects to cause trouble later in the process.
Why the Conveyor Layout Matters
One of the practical lessons from the installation was that magnetic separation performance depends heavily on the conveyor arrangement.
The magnet cannot simply be placed at any convenient point above the belt.
The available installation height, conveyor width, belt speed, material depth and distance between the magnet and the material all need to be considered.
For cross-belt installations, the position of the magnet relative to the conveyor and discharge point is especially important. Installation guidance for suspended permanent magnets notes that conveyor speed, burden depth and suspension height can all influence separation performance.
This is why Hengci recommends confirming the conveyor layout before selecting the final Suspended Belt Magnetic Separator configuration.
A few measurements taken at the site can make a significant difference to the final equipment design.
Continuous Aggregate Production Was the Main Goal
The customer was not looking for a magnetic separator that required frequent production interruptions.
The aggregate plant was designed around continuous material movement.
The crusher runs, the conveyor runs and the screening system runs. Any additional process therefore needs to fit into this production rhythm.
A self-cleaning Permanent Overband Magnetic Separator fits this requirement because the captured iron is removed automatically while the aggregate continues moving.
The operator can monitor the separated material without repeatedly stopping the main conveyor for manual cleaning.
This type of continuous protection is one reason suspended permanent magnets are widely used in quarrying, mining and aggregate applications.
Choosing the Right Conveyor Belt Magnet for an Aggregate Plant
Not every aggregate conveyor requires the same magnetic configuration.
A smaller conveyor carrying a shallow layer of crushed stone may have different requirements from a wide belt carrying a deep burden of large rock.
Before selecting a Conveyor Belt Magnet, several factors should be considered:
The conveyor width determines the required magnetic coverage.
The belt speed affects how long the material remains within the effective separation zone.
The material burden determines how deeply the magnet needs to reach.
The size and shape of expected tramp iron influence the required magnetic force.
The installation position determines whether an inline or cross-belt configuration is more appropriate.
These details are more useful for equipment selection than simply looking at the rated capacity of the conveyor.
From Crusher Protection to Better Plant Reliability
The purpose of the installation was straightforward: remove unwanted ferrous metal before it became a mechanical problem.
But the broader result is better process reliability.
A crusher that avoids unnecessary tramp iron encounters has fewer opportunities for sudden blockage or damage. A conveyor protected from sharp metal has a lower risk of belt damage. Operators also spend less time dealing with unexpected interruptions.
This is where a Suspended Belt Magnetic Separator becomes part of the production system rather than an accessory added after the main equipment has been selected.
The magnetic separator does not increase the hardness of the rock or make the crusher itself more powerful.
Its job is to keep the wrong material away from the equipment that was never designed to process it.
Hengci Permanent Overband Magnetic Separator for Aggregate Applications
Hengci supplies permanent magnetic separation equipment for quarrying, aggregate processing, mining and other heavy-duty conveyor applications.
For an aggregate plant, the Permanent Overband Magnetic Separator can be configured according to conveyor width, belt speed, material burden, installation height and expected tramp iron.
The self-cleaning belt allows captured ferrous objects to be discharged continuously, reducing the need for manual cleaning and helping the production line maintain stable operation.
For customers upgrading an existing conveyor, Hengci can also evaluate the available installation space and determine whether an inline or cross-belt Conveyor Belt Magnet arrangement is more suitable.
The goal is not simply to install a magnet above a conveyor. It is to create a reliable protection point at the place where tramp iron presents the greatest risk.
Conclusion
In aggregate production, the material that causes the most trouble is sometimes not the material being processed.
A small amount of tramp iron can enter the feed together with large quantities of stone and remain unnoticed until it reaches a crusher, conveyor or screening machine.
At the Indonesian customer site, the installation of a Permanent Overband Magnetic Separator created a continuous protection stage above the aggregate conveyor.
The Suspended Belt Magnetic Separator removes ferrous objects before they reach critical downstream equipment, while the self-cleaning system carries the captured metal away automatically.
For quarry and aggregate producers, a properly positioned Conveyor Belt Magnet is therefore more than an iron-removal device. It is a practical part of a production strategy focused on equipment protection, fewer interruptions and more reliable material handling.
