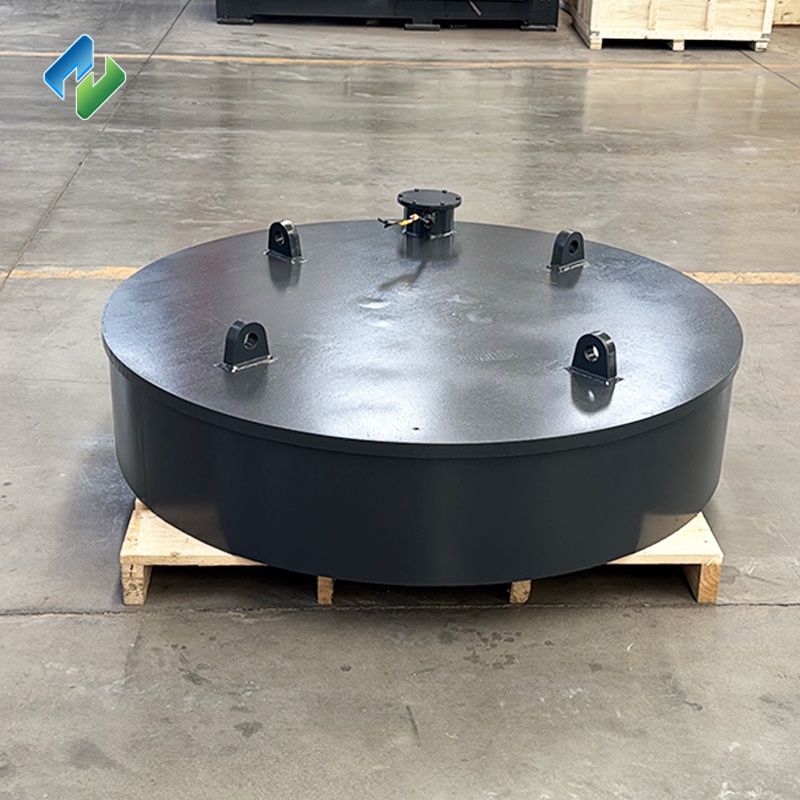

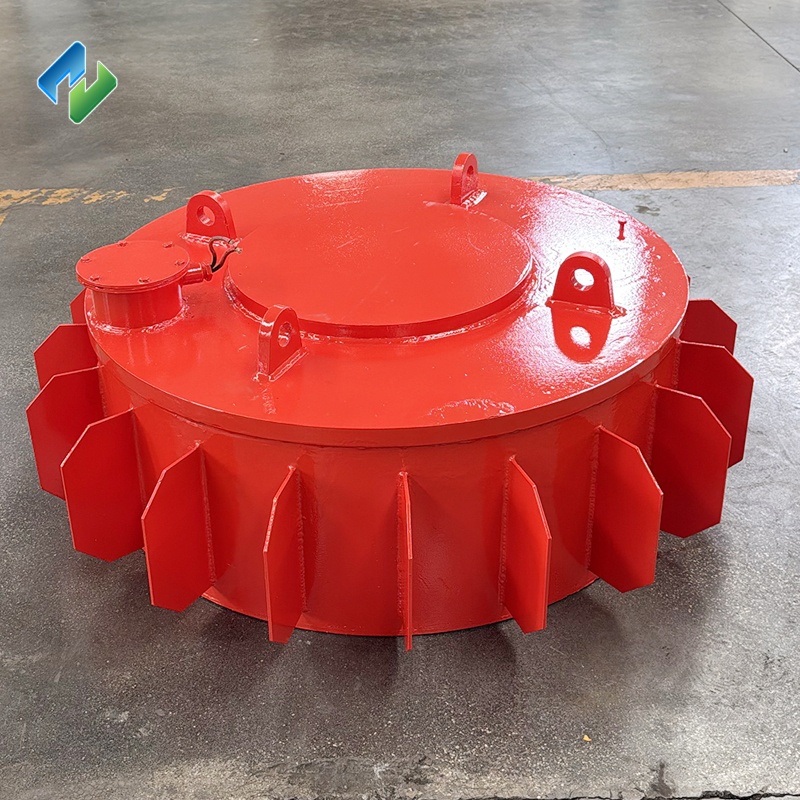

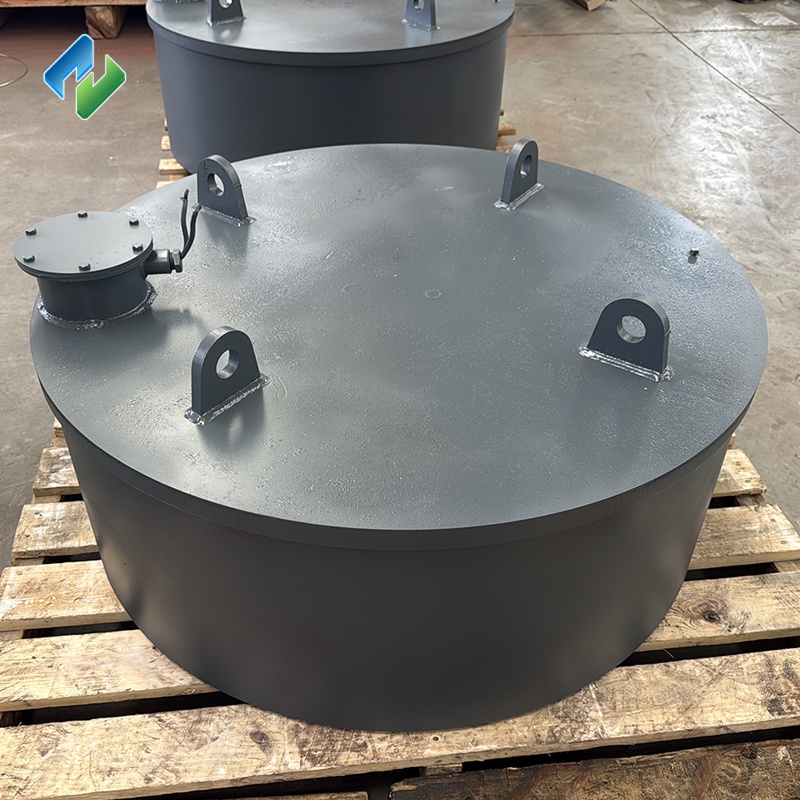

Suspended Disc Electromagnetic Separator for Coal and Power Plants
author: hengci
2026-08-22
Coal moves through a power plant as part of a highly connected process. From unloading and conveying to crushing, screening, and feeding, every stage depends on reliable material flow.
The problem is that coal is rarely completely free of unwanted metal.
Broken bolts, steel fragments, tools, mining equipment components, and other ferrous objects can enter the coal stream during mining, transportation, and handling. If they reach a crusher or other critical equipment, they can cause blockages, mechanical damage, and unexpected shutdowns.
This is where a Suspended Disc Electromagnetic Separator can become an important part of the coal handling system.

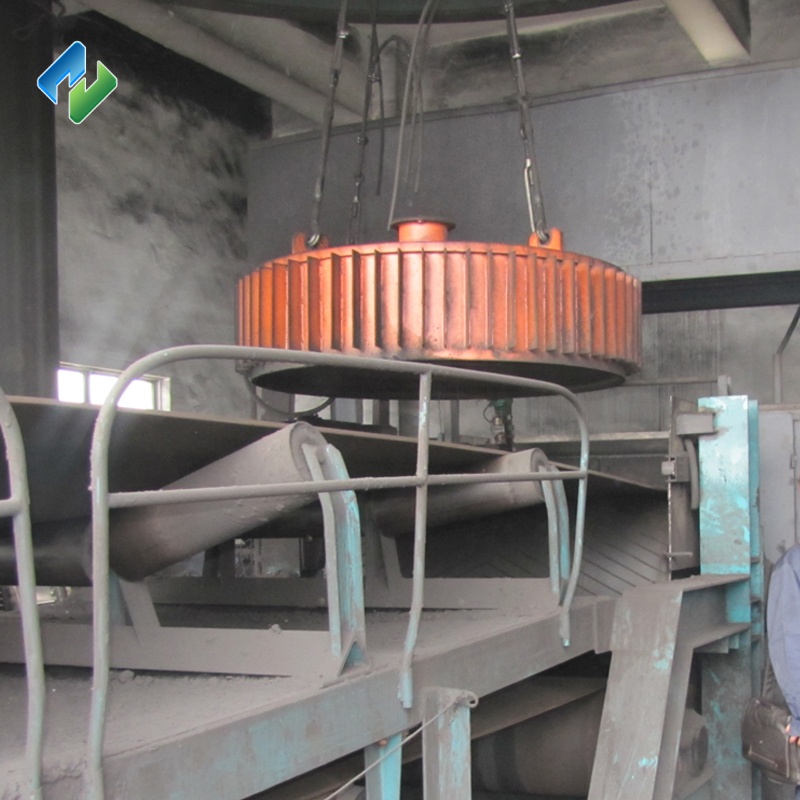

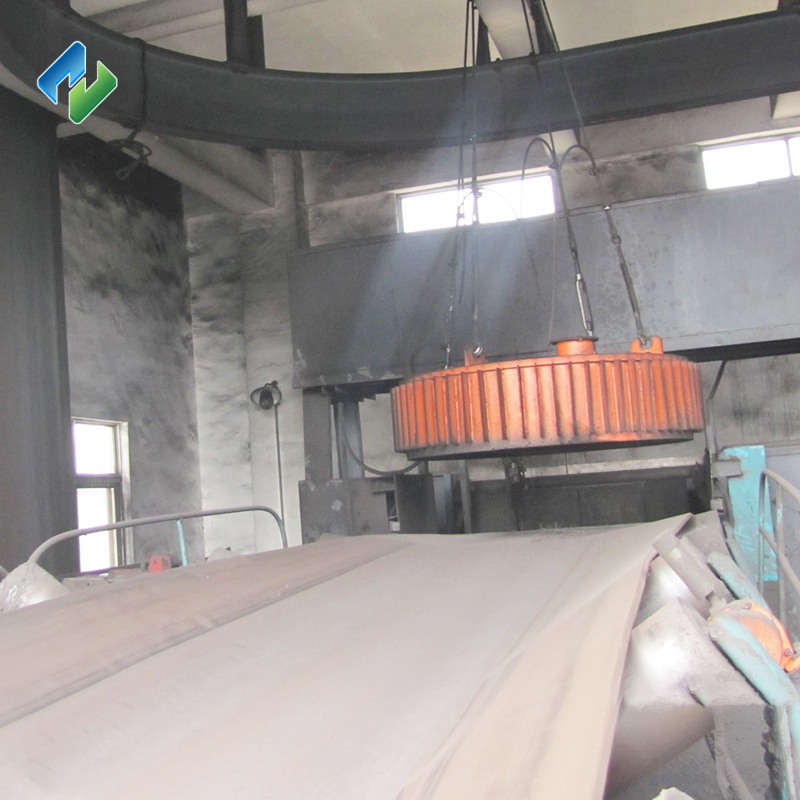

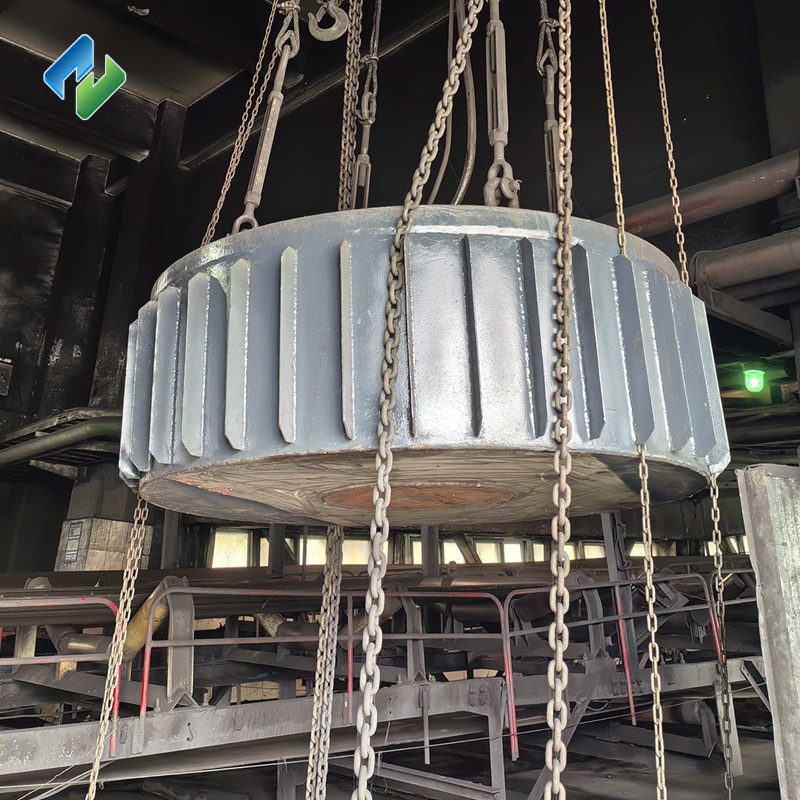

Installed above a conveyor, the equipment continuously generates a strong magnetic field to attract and remove ferrous contaminants before they reach downstream equipment.
Why Coal Handling Requires Reliable Iron Removal
Coal preparation and power generation facilities often process large quantities of material continuously. A small contamination problem can therefore become a major production problem when it reaches high-speed or high-capacity equipment.
A piece of tramp iron entering a crusher may damage internal components or cause the entire conveying line to stop. In a power plant, such interruptions can affect the fuel supply system and ultimately disrupt boiler operation.
Magnetic separation provides a preventive solution.
Instead of waiting for metal contamination to cause a failure, a Disc Magnetic Separator removes ferrous objects while the coal is still moving through the conveyor system.
This makes magnetic separation an important part of equipment protection rather than simply a material-cleaning process.
From Coal Yard to Boiler Feed System
Coal can pass through several handling stages before reaching the combustion system.
A typical route may include:
Coal unloading → Storage → Conveyor → Crushing → Screening → Pulverizing → Boiler feeding
Every transfer point creates an opportunity for unwanted metal to enter the material stream.
A Suspended Disc Magnet can be positioned at strategic locations along the conveyor system to intercept ferrous objects before they reach crushers, pulverizers, feeders, or other sensitive equipment.
Early removal is particularly valuable because it prevents a relatively inexpensive piece of metal from becoming a much more expensive mechanical problem.
Protecting Crushers from Tramp Metal
Coal crushers are among the most important pieces of equipment in a coal handling system. They reduce incoming coal to a suitable size for subsequent processing and combustion.
However, crushers are not designed to process steel objects.
Large pieces of ferrous metal can become trapped inside the crushing chamber, causing severe mechanical stress or unexpected shutdowns.
A Suspended Disc Electromagnetic Separator installed upstream can continuously lift these objects from the coal stream.
The result is a simple but valuable form of protection:
- Tramp iron is removed before entering the crusher.
- The risk of mechanical damage is reduced.
- Unplanned maintenance can be minimized.
- Coal handling can continue with fewer interruptions.
For high-capacity power plants, preventing even a small number of major equipment failures can have a significant economic impact.
Why Electromagnetic Separation Is Suitable for Heavy Coal Streams
Coal handling systems can involve deep material layers, high conveyor speeds, and relatively large pieces of tramp metal. The magnetic system therefore needs sufficient lifting force to separate unwanted iron from the moving material.
An electromagnetic design allows the magnetic field to be generated and controlled according to the operating requirements.
The Disc Magnetic Separator can provide strong magnetic attraction across the conveyor while maintaining continuous separation during material handling.
This makes electromagnetic technology particularly suitable for heavy-duty applications where reliable tramp iron removal is more important than simply achieving a clean final product.
The Role of Magnetic Separation in Power Generation
In a coal-fired power plant, fuel handling reliability is closely connected to overall plant operation.
Coal must reach the boiler consistently and at the required rate. Problems in the conveying or crushing system can interrupt this process and create operational challenges further downstream.
A Suspended Disc Magnet provides an additional layer of protection within this fuel preparation system.
By removing unwanted ferrous material before it reaches critical equipment, magnetic separation helps maintain a smoother material flow and supports more stable fuel handling.
The value is therefore not limited to iron removal. It contributes to the reliability of the wider power generation process.
Continuous Operation for High-Capacity Coal Conveyors
Coal and power facilities cannot always afford to stop a conveyor every time magnetic contamination needs to be removed.
For this reason, automatic magnetic separation is particularly valuable in large-scale plants.
The suspended disc configuration can operate above a continuously moving conveyor, while the captured ferrous objects are discharged away from the main coal stream.
This allows the magnetic separation process to work alongside the conveyor rather than interrupting it.
For facilities operating long shifts or continuous production schedules, this can reduce manual intervention and improve overall system availability.
Beyond Coal-Fired Power Plants
Although coal handling is a major application, suspended electromagnetic separation can also be used in other bulk material systems where large volumes of material must be protected from tramp iron.
Potential applications include coal preparation plants, mining operations, material transfer stations, bulk handling facilities, and other heavy industrial conveying systems.
The common requirement is straightforward: remove unwanted ferrous objects before they reach expensive downstream equipment.
Choosing the Right Disc Magnetic Separator
The performance of a magnetic separator depends on the actual conveyor conditions.
Factors such as belt width, belt speed, material depth, installation height, coal characteristics, and expected tramp metal size should all be considered when selecting equipment.
A properly configured Suspended Disc Electromagnetic Separator should provide sufficient magnetic coverage and lifting force for the specific application rather than simply relying on a high magnetic field specification.
Hengci can customize magnetic configurations according to conveyor layout, material characteristics, and required separation performance.
For this reason, automatic magnetic separation is particularly valuable in large-scale plants.
The suspended disc configuration can operate above a continuously moving conveyor, while the captured ferrous objects are discharged away from the main coal stream.
This allows the magnetic separation process to work alongside the conveyor rather than interrupting it.
For facilities operating long shifts or continuous production schedules, this can reduce manual intervention and improve overall system availability.
Beyond Coal-Fired Power Plants
Although coal handling is a major application, suspended electromagnetic separation can also be used in other bulk material systems where large volumes of material must be protected from tramp iron.
Potential applications include coal preparation plants, mining operations, material transfer stations, bulk handling facilities, and other heavy industrial conveying systems.
The common requirement is straightforward: remove unwanted ferrous objects before they reach expensive downstream equipment.
Choosing the Right Disc Magnetic Separator
The performance of a magnetic separator depends on the actual conveyor conditions.
Factors such as belt width, belt speed, material depth, installation height, coal characteristics, and expected tramp metal size should all be considered when selecting equipment.
A properly configured Suspended Disc Electromagnetic Separator should provide sufficient magnetic coverage and lifting force for the specific application rather than simply relying on a high magnetic field specification.
Hengci can customize magnetic configurations according to conveyor layout, material characteristics, and required separation performance.
Hengci Magnetic Separation Solutions for Coal Handling
Hengci develops magnetic separation equipment for mining, coal handling, power generation, and other heavy industrial applications.
Our Suspended Disc Magnet solutions are designed around one practical objective: removing unwanted ferrous material before it creates problems further down the production line.
Depending on the application, the equipment can be configured for different conveyor widths, material loads, installation conditions, and separation requirements.
This approach allows the magnetic separator to become an integrated part of the coal handling system rather than an additional process that operators have to work around.
Preventing Problems Before They Reach the Crusher
Coal handling is a continuous chain. If one critical piece of equipment stops, the effect can quickly spread through the rest of the system.
A properly installed Disc Magnetic Separator creates a simple protection point between the incoming coal and vulnerable downstream machinery.
For coal preparation plants and power stations, that protection can mean fewer interruptions, lower maintenance pressure, and a more dependable material handling process.
In high-capacity coal systems, removing tramp iron before it becomes a mechanical problem is one of the simplest ways to support more reliable operation.
Hengci develops magnetic separation equipment for mining, coal handling, power generation, and other heavy industrial applications.
Our Suspended Disc Magnet solutions are designed around one practical objective: removing unwanted ferrous material before it creates problems further down the production line.
Depending on the application, the equipment can be configured for different conveyor widths, material loads, installation conditions, and separation requirements.
This approach allows the magnetic separator to become an integrated part of the coal handling system rather than an additional process that operators have to work around.
Preventing Problems Before They Reach the Crusher
Coal handling is a continuous chain. If one critical piece of equipment stops, the effect can quickly spread through the rest of the system.
A properly installed Disc Magnetic Separator creates a simple protection point between the incoming coal and vulnerable downstream machinery.
For coal preparation plants and power stations, that protection can mean fewer interruptions, lower maintenance pressure, and a more dependable material handling process.
In high-capacity coal systems, removing tramp iron before it becomes a mechanical problem is one of the simplest ways to support more reliable operation.
