Oil-Cooled Magnetic Separator for Coal Handling in Thermal Power Plants

author: hengci

2026-08-29

A thermal power plant depends on one thing above all: continuous and reliable operation.

Before coal reaches the boiler, it may pass through unloading systems, storage yards, conveyors, crushers, screens, feeders, and pulverizing equipment. Throughout this journey, unwanted ferrous objects can enter the coal stream.

Steel bolts, broken tools, wire, machine components, and other tramp iron may appear insignificant compared with the enormous volume of coal being handled. But once they enter a crusher or other critical equipment, they can cause blockages, mechanical damage, and unexpected shutdowns.

This is why magnetic iron removal is an essential protection step in modern coal handling systems.

An Oil-Cooled Magnetic Separator provides strong electromagnetic attraction above the conveyor and continuously removes ferrous contaminants before they reach vulnerable downstream equipment.

The Coal Conveyor Is More Than a Transport System

In a thermal power plant, conveyors are responsible for keeping fuel moving between different stages of the coal handling process.

A typical system may involve:

Coal unloading → Storage → Conveying → Crushing → Screening → Feeding → Pulverizing → Boiler

If tramp iron reaches the wrong point in this chain, the consequences can extend far beyond the conveyor itself.

A large steel object entering a crusher may damage the crushing mechanism. Smaller metallic fragments can also travel further into the system and increase wear on downstream equipment.

Installing a magnetic separator above the conveyor creates a dedicated protection point before these problems occur.

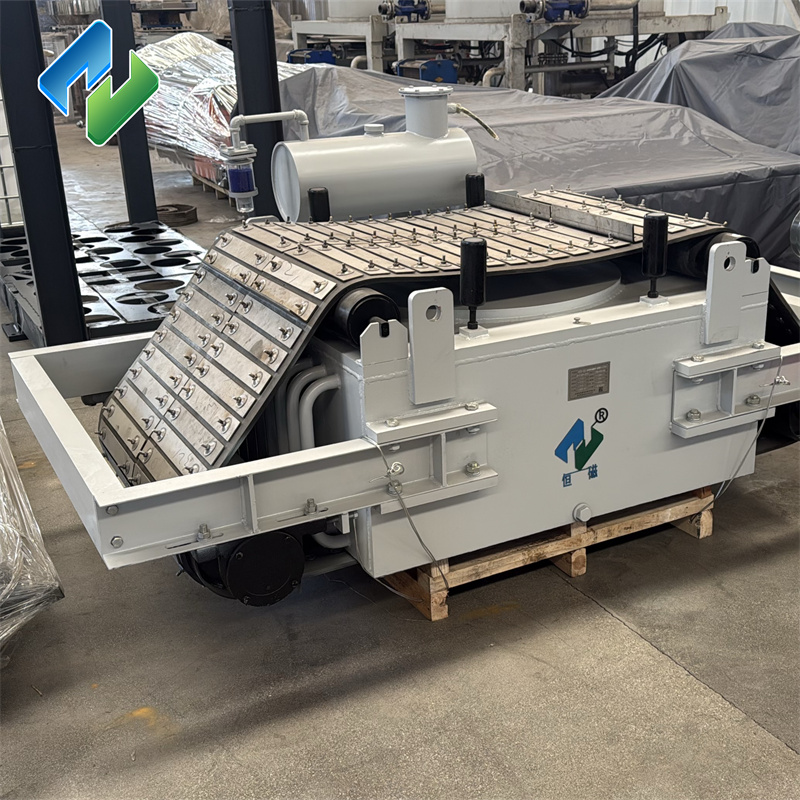

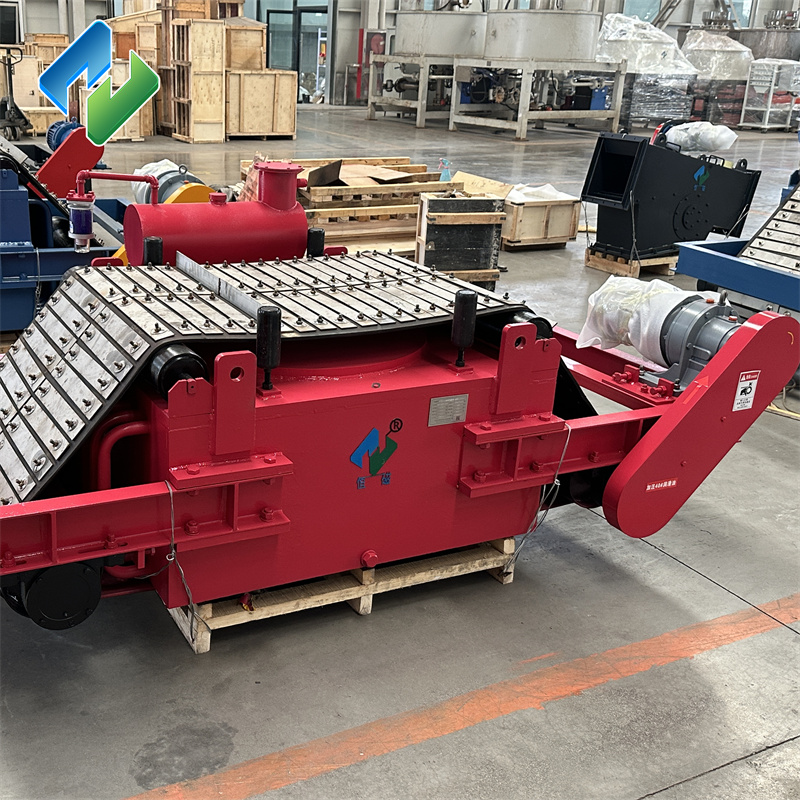

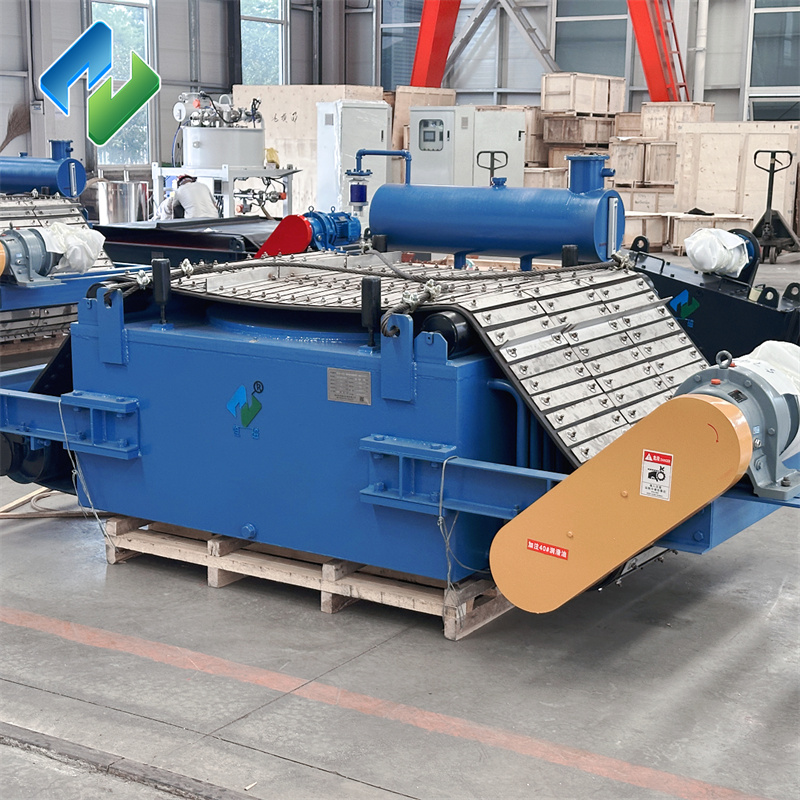

A Belt Magnetic Separator therefore contributes directly to the reliability of the fuel handling system.

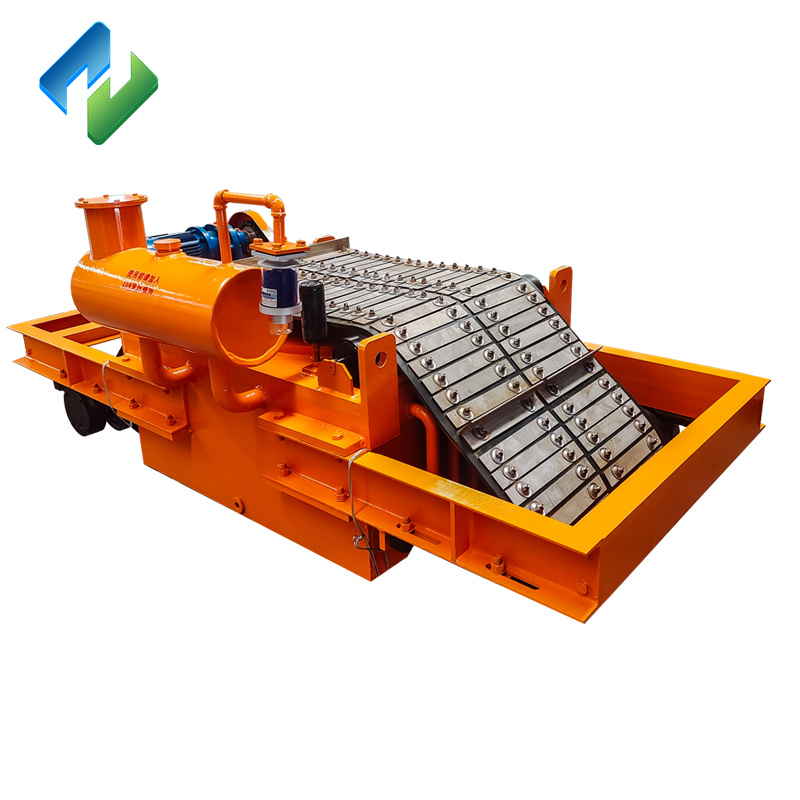

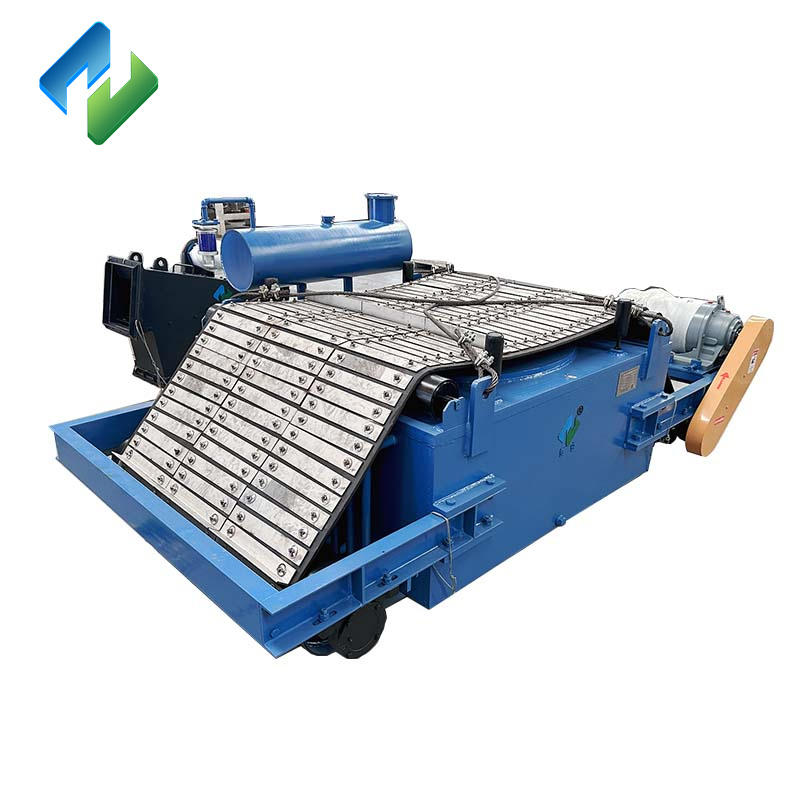

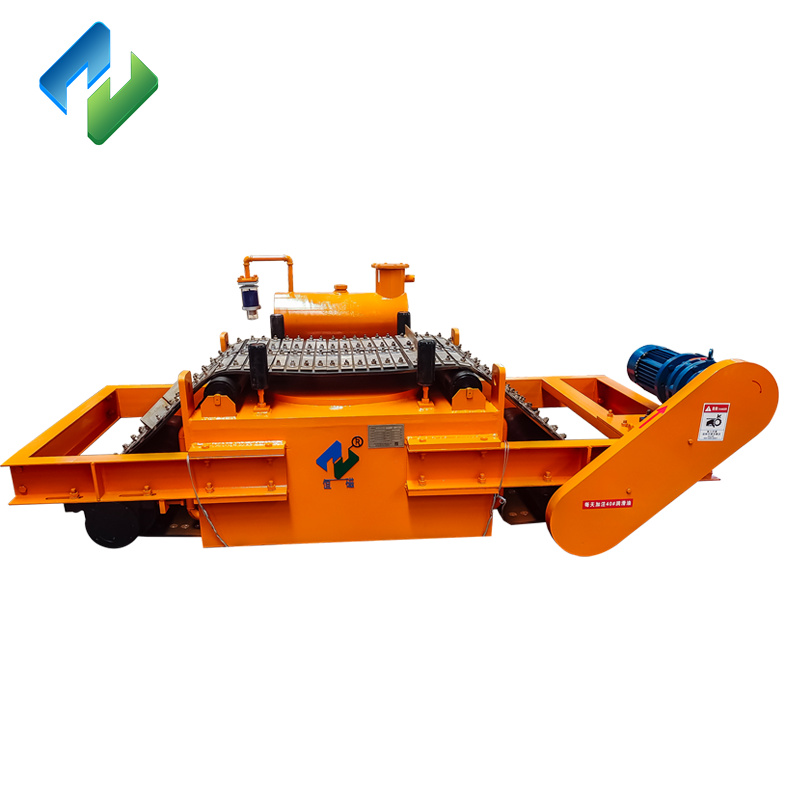

Self-Cleaning Overband Magnetic Separator

Why Tramp Iron Removal Matters to Power Plants

Power plants handle coal at a scale where even a short interruption can have a significant operational impact.

The purpose of magnetic separation is not simply to collect valuable scrap metal. Its more important function is to prevent foreign ferrous objects from reaching expensive equipment.

A Self-Cleaning Overband Magnetic Separator can continuously remove captured iron without requiring operators to stop the conveyor for frequent manual cleaning.

This can help power plants:

Protect coal crushers and other processing equipment.
Reduce unexpected shutdowns caused by tramp iron.
Minimize manual inspection and metal removal.
Maintain smoother coal flow through the handling system.
Reduce maintenance pressure on critical equipment.

For a large thermal power plant, preventing one major equipment failure can justify the value of a magnetic protection system on its own.

Why an Oil-Cooled Design Is Valuable

Electromagnetic separators generate heat during continuous operation. In a thermal power plant, where conveyors may run for extended periods, controlling the temperature of the magnetic system is essential for maintaining stable performance.

An Oil-Cooled Magnetic Separator uses insulating transformer oil to transfer heat away from the electromagnetic components.

Compared with relying only on natural heat dissipation, oil cooling provides a more effective method of managing heat during demanding operating conditions.

This is particularly useful for applications requiring:

Long-duration continuous operation
High magnetic lifting force
Stable electromagnetic performance
Operation in demanding industrial environments

By maintaining a more controlled operating temperature, the oil-cooled system is better suited to the requirements of heavy-duty coal handling.

Continuous Cleaning Keeps the Conveyor Moving

A magnetic separator is most valuable when it can operate at the same pace as the production line.

Stopping a coal conveyor every time accumulated iron needs to be removed would defeat much of the purpose of automated magnetic separation.

The Self-Cleaning Overband Magnetic Separator uses a secondary belt to continuously discharge captured ferrous objects away from the magnetic field.

The process is automatic:

Coal passes underneath → Ferrous objects are attracted → Iron is lifted from the coal → Cleaning belt carries it away → Captured metal is discharged

The coal remains on its normal conveying path while the unwanted metal is removed.

This makes automatic cleaning particularly important for large power plants operating continuously or for long production shifts.

Protecting Crushers Is a Major Application

Among the most important reasons to install a Belt Magnetic Separator in a coal handling system is crusher protection.

Coal crushers are built to process coal—not steel.

Tramp iron can become lodged inside the crusher or cause abnormal mechanical loading. Depending on the size and shape of the metal object, the resulting damage can require significant maintenance and lead to extended downtime.

A magnetic separator installed upstream acts as an early warning and protection barrier.

Instead of allowing the contaminant to

travel into the crushing stage, the separator removes it while the coal is still on the conveyor.

This simple intervention can help protect one of the most critical pieces of equipment in the fuel preparation system.

Suitable for Different Coal Handling Stages

An Oil-Cooled Magnetic Separator does not have to be limited to a single point in the plant.

Depending on the layout, magnetic separation can be considered at different conveyor sections where tramp iron could create a significant risk.

It may be used around coal receiving and transfer areas, before crushing equipment, or at other material transfer points where ferrous contamination needs to be controlled.

The ideal installation position depends on conveyor width, belt speed, material burden depth, installation height, coal characteristics, and the expected size of tramp iron.

Correct positioning is just as important as selecting the appropriate magnetic system.

Built for the Demands of Thermal Power Plants

Coal handling areas are not gentle operating environments.

Dust, vibration, long working hours, heavy material loads, and continuous conveyor operation place considerable demands on equipment.

For this reason, magnetic separation equipment used in power plants needs to combine magnetic performance with reliable mechanical construction.

Hengci's Oil-Cooled Magnetic Separator is designed for heavy-duty conveyor applications where continuous iron removal and equipment protection are priorities.

The system can be configured according to actual operating conditions, including conveyor dimensions, material capacity, installation height, and required magnetic lifting performance.

Magnetic Separation as Preventive Maintenance

The best equipment protection is often the protection that prevents a problem from happening in the first place.

A crusher damaged by a large steel object creates an emergency maintenance event. A conveyor stopped for manual inspection creates a production interruption. A magnetic separator installed upstream can address the source of both problems.

This is why a Self-Cleaning Overband Magnetic Separator should be viewed as part of a plant's preventive maintenance strategy.

It provides continuous protection while the coal handling system continues operating normally.

For power plant operators, that means the value of magnetic separation is closely connected to uptime, equipment availability, and long-term operating costs.

Hengci Oil-Cooled Magnetic Separator for Power Plant Applications

Hengci specializes in magnetic separation equipment for mining, coal handling, power generation, recycling, and other heavy industrial applications.

Our Oil-Cooled Magnetic Separator is developed for applications requiring strong electromagnetic separation and reliable continuous operation.

Key advantages include:

Oil cooling helps control electromagnetic system temperature during prolonged operation.
Automatic belt cleaning continuously removes captured ferrous objects from the magnetic zone.
Strong electromagnetic attraction provides effective tramp iron removal from moving coal streams.
Heavy-duty construction is suitable for demanding conveyor environments.
Customized configurations can be developed according to conveyor size and operating conditions.

The result is a magnetic protection system designed around the actual requirements of coal handling rather than a standard configuration.

Keeping Fuel Handling Reliable from Coal to Boiler

A thermal power plant cannot afford unnecessary interruptions in its fuel supply chain.

Coal must move reliably from the storage area through crushing and preparation before reaching the boiler. Every stage depends on the previous one operating correctly.

An Oil-Cooled Magnetic Separator provides a powerful protection point within this chain, continuously removing tramp iron before it can reach critical equipment.

Combined with automatic cleaning, a Self-Cleaning Overband Magnetic Separator can operate alongside the conveyor with minimal manual intervention.

For modern coal-fired power plants, the purpose is ultimately simple: keep unwanted metal out of the equipment, keep the coal moving, and keep the power generation process running.
