Magnetic Drum / Magnetic Drum Separator / Magnetic Pulley: Efficient Metal Removal for Conveyor Systems

In industries like mining, coal, power plants, and cement, bulk materials often carry unwanted metal contaminants such as bolts, scrap steel, and broken parts, and if these tramp iron pieces are not removed in time, they can easily damage conveyor belts, block crushers, or even shut down entire production lines, which is why more and more companies are turning to Magnetic Drum, Magnetic Drum Separator, and Magnetic Pulley solutions to ensure smooth and safe operations.

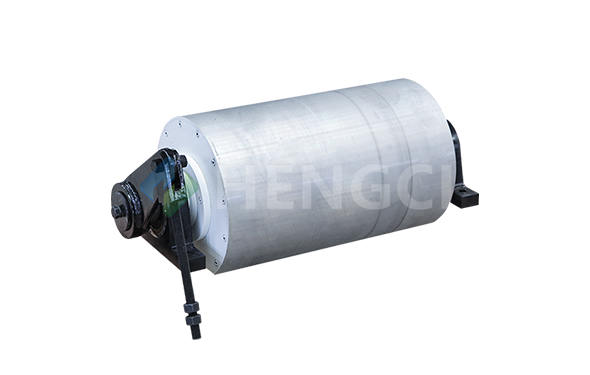

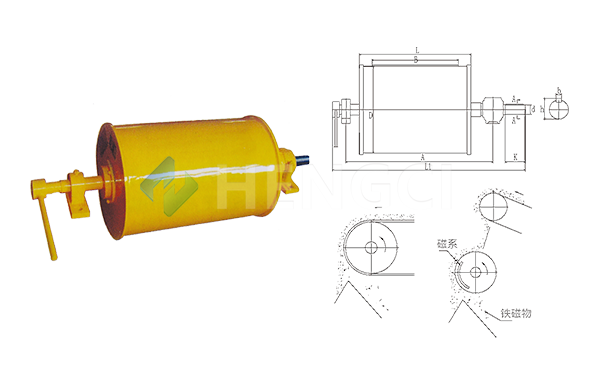

What is a Magnetic Drum?
A Magnetic Drum is a rotating magnetic separation device designed to remove ferrous materials from bulk materials continuously, and it is typically installed at the end of a conveyor system or used as part of a standalone separation unit, where it uses a powerful magnetic field to attract and hold iron contaminants while allowing clean material to pass through, making it a simple yet highly reliable solution for industrial metal separation.

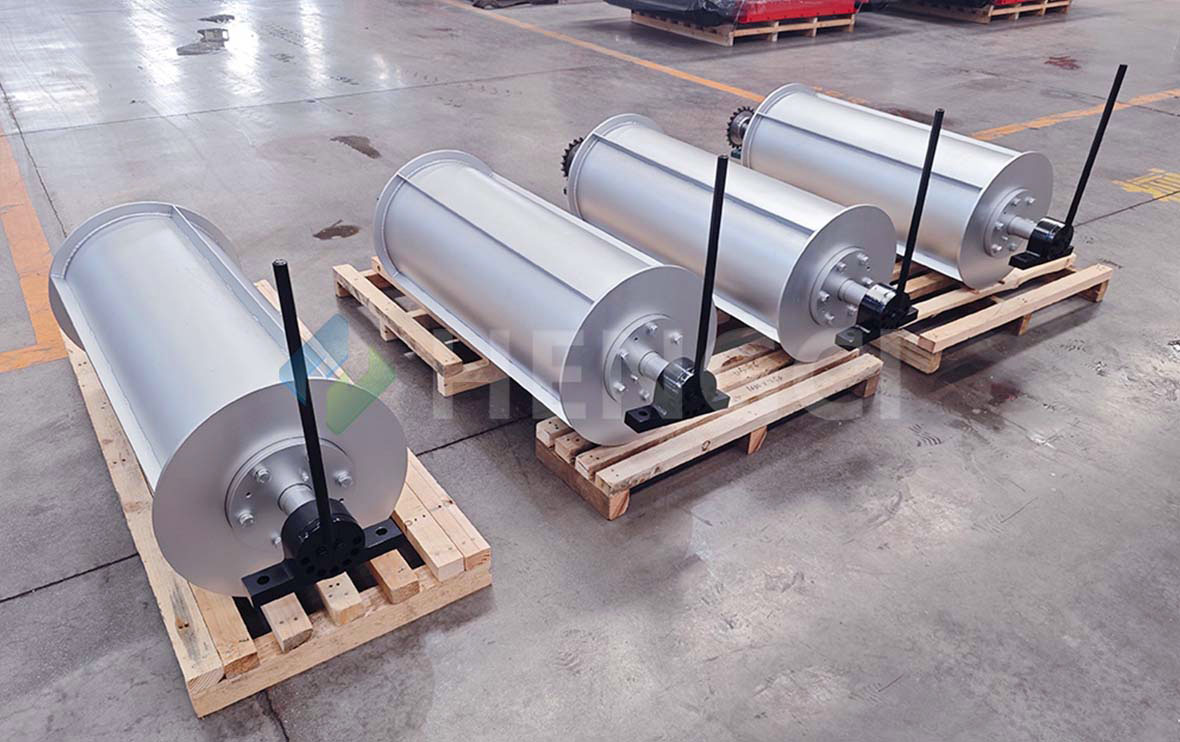

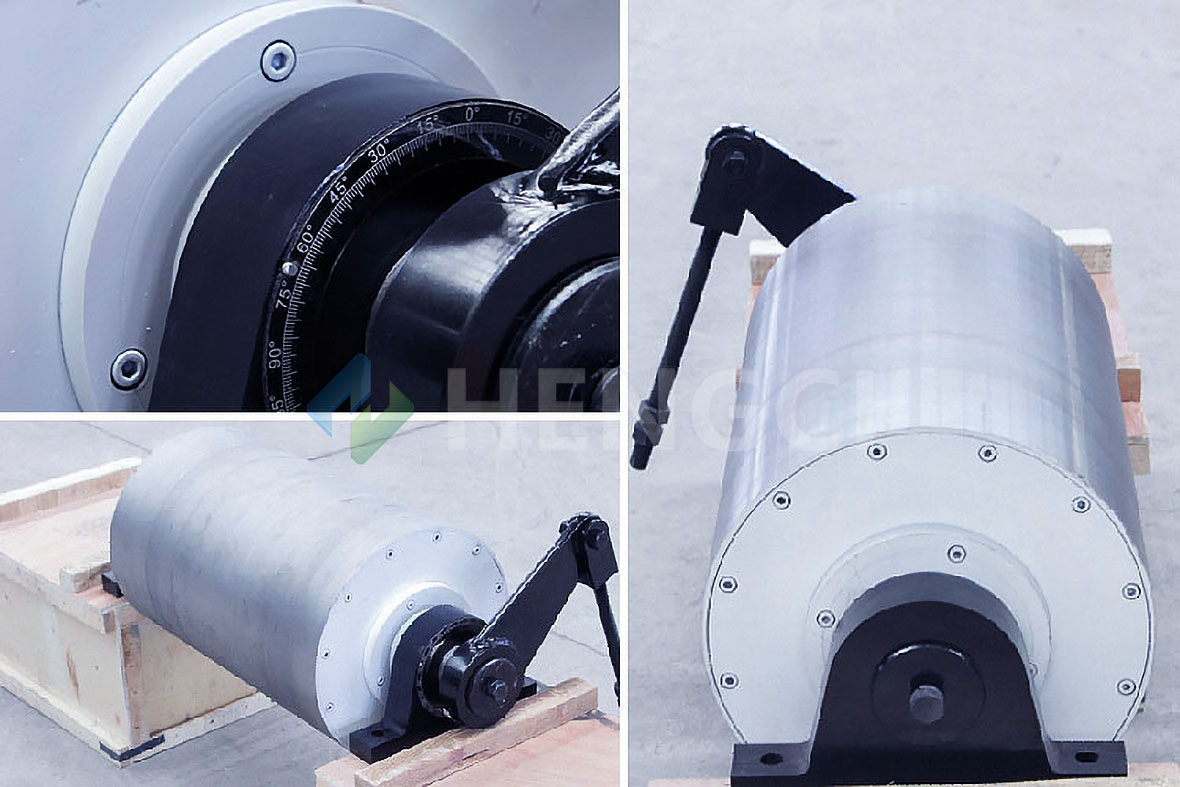

How Does a Magnetic Drum Separator Work?
A Magnetic Drum Separator operates by generating a stable magnetic field inside the drum, and as the material flows over the rotating surface, ferrous metals are attracted and held against the drum while non-magnetic materials fall away naturally, then as the drum continues to rotate, the captured metal moves out of the magnetic zone and is automatically discharged, enabling a continuous, automated, and highly efficient separation process without manual intervention.
Advantages of Magnetic Pulley
A Magnetic Pulley, also known as a magnetic head pulley, is installed at the head or tail of a conveyor belt, replacing a standard pulley while adding metal separation functionality, and compared to other systems, it offers a more compact and energy-efficient solution since it combines conveying and separation into one unit, requires no additional space, operates without external power when using permanent magnets, and provides automatic metal removal with minimal maintenance.

 ​​​​​​​
Magnetic Drum vs Magnetic Pulley
Although both Magnetic Drum and Magnetic Pulley are used for removing tramp iron, they serve slightly different purposes, as a Magnetic Drum is usually used as a standalone separation unit for dedicated processing lines, while a Magnetic Pulley is integrated directly into the conveyor system, allowing separation to occur during material discharge, and in many cases, combining both can achieve even higher separation efficiency.
Typical Applications
These magnetic separation solutions are widely used across various industries, including mining for iron and coal processing, power plants for protecting coal handling systems, cement plants for safeguarding crushers and mills, and ports or bulk material handling facilities where continuous and reliable metal removal is essential to maintain operational efficiency and reduce downtime.

 ​​​​​​​
How to Choose the Right Magnetic Drum Separator?
When selecting a Magnetic Drum Separator or Magnetic Pulley, it is important to consider factors such as belt width, material thickness, throughput capacity, size and type of metal contaminants, installation position, and working environment conditions like moisture and corrosion, because proper selection not only improves separation efficiency but also extends equipment life and reduces overall operating costs.
Conclusion
Whether you choose a Magnetic Drum, Magnetic Drum Separator, or Magnetic Pulley, these solutions play a critical role in modern bulk material handling systems by effectively removing metal contaminants, protecting equipment, reducing maintenance costs, and ensuring smooth and continuous production, making them an essential investment for any industry dealing with bulk materials.
